UDO DMNO - 8 Voice Polyphonic Binaural Analog-hybrid Synth - White — Synthesizer
UDO DMNO - 8 Voice Polyphonic Binaural Analog-hybrid Synth - White — Synthesizer

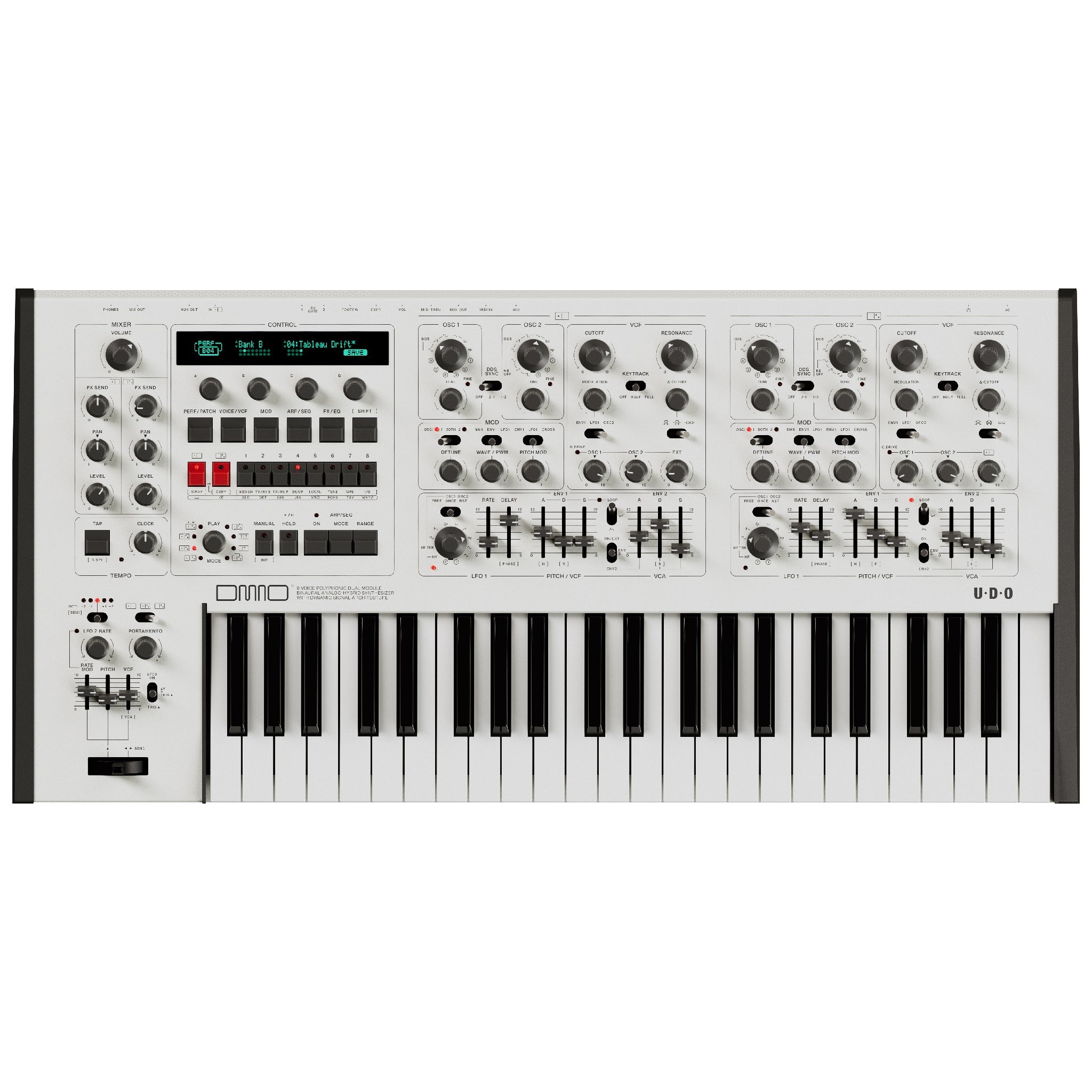

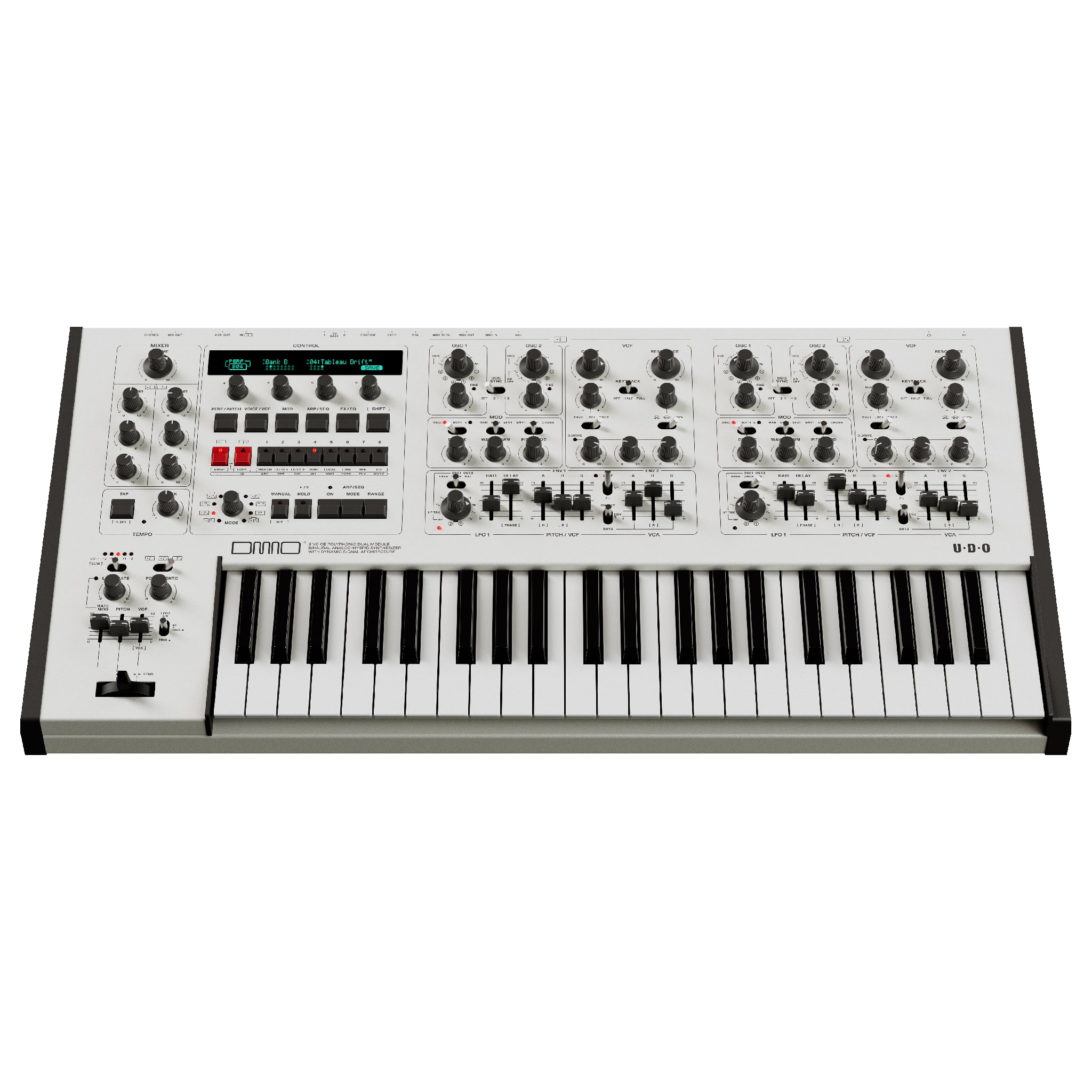

UDO Audio DMNO is a white 44-key analog-hybrid polyphonic synthesizer. UDO describes it as an 8-voice, 2-part multitimbral instrument built from two independent 4-voice analog-hybrid synthesizers, with 4 super voices available in binaural mode.
Specifications
Synthesis Engine
| Product type | 44-key analog-hybrid polyphonic synthesizer |
|---|---|
| Polyphony | 8 voices; 4 super voices in Binaural mode |
| Multitimbrality | 2-part multitimbral; two independent 4-voice synth engines |
| Oscillators | Two ultra-high-sample-rate FPGA digital oscillators per synth engine |
| Filters | Per-voice Dynamic Multi-Core stereo analog VCF with parallel, series and stereo configurations |
Performance and Control
| Keys | 44 keys |
|---|---|
| Play modes | Eight play modes: Single, Dual, Split, One-Two, Cycle, Random, Chaos and Series |
| Sequencer | 64-step sequencer |
| Arpeggiator | Multi-mode arpeggiator with smart hold |

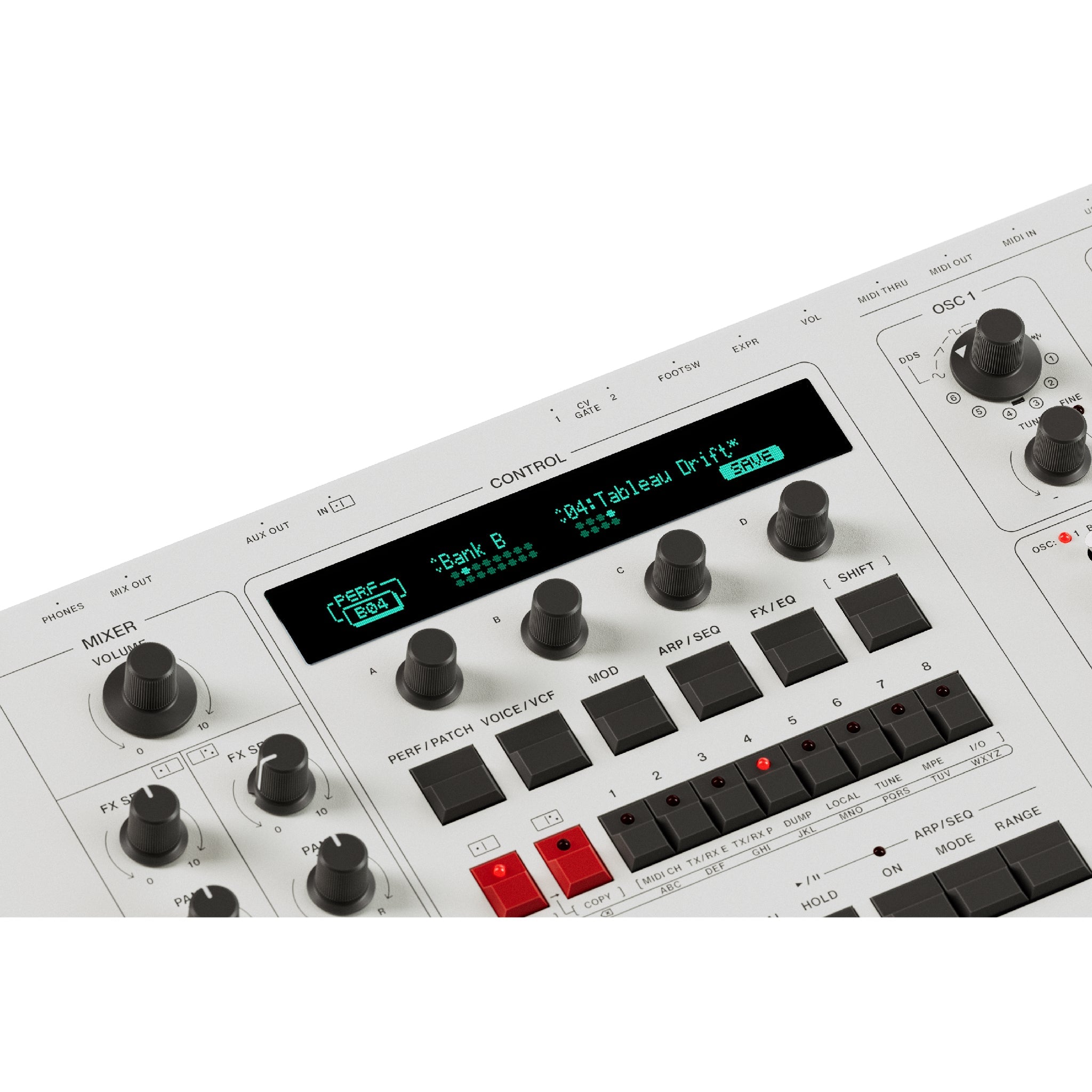

| Display | High-contrast electroluminescent glass VFD |

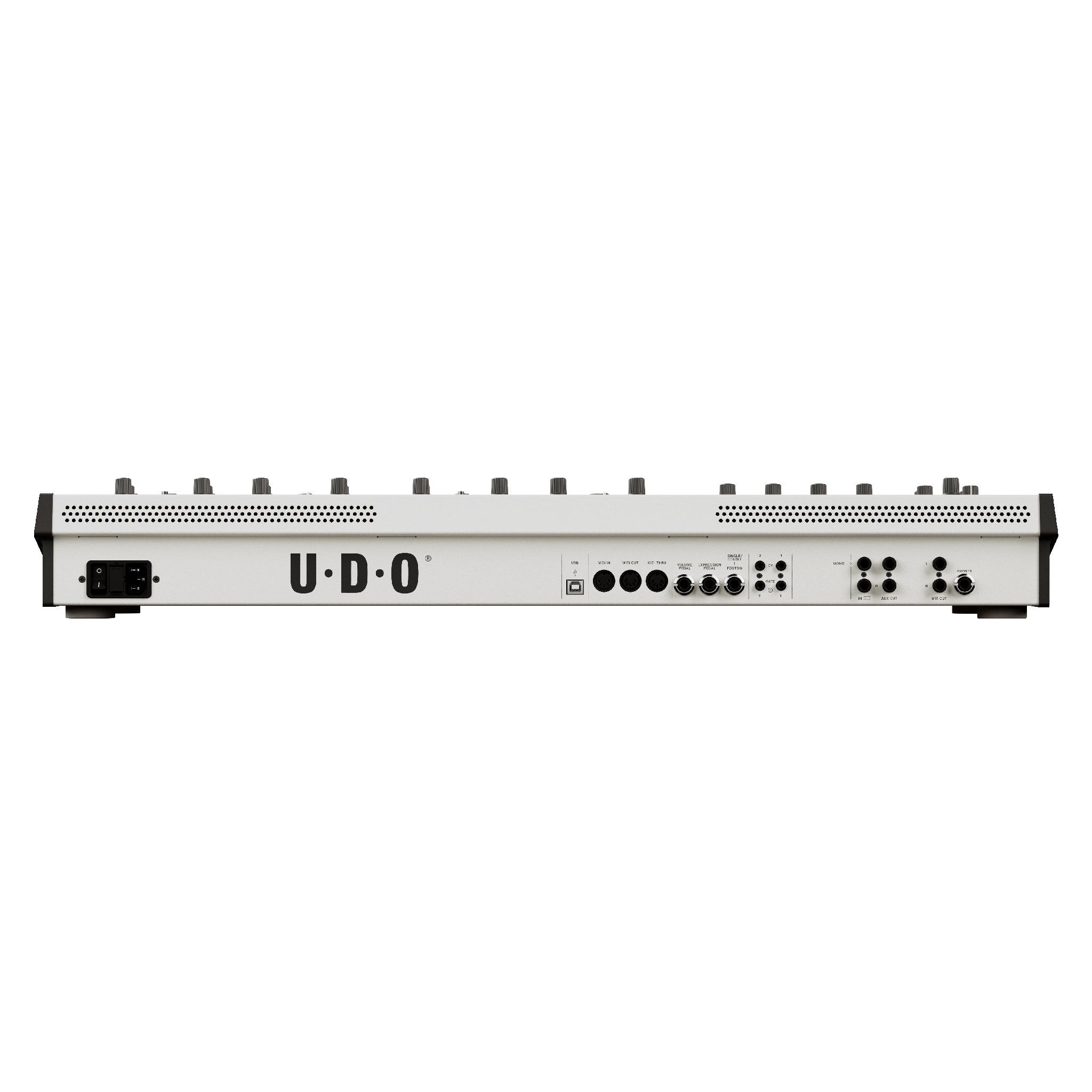

Connectivity
| Usb audio | 24-bit 2-in/2-out USB audio interface |
|---|---|
| Midi | USB class-compliant MIDI plus DIN MIDI in, out and thru |
| External input | Stereo external audio input with variable-gain preamp and gate level detector |
| Cv gate | CV, gate and clock outputs |
| Effects | Delay, reverb, EQ, overdrive/distortion and chorus |
Fit and constraints
Intended use
Constraints
To use it
Questions
What firmware, software, storage, and synchronization features are supported by this exact model?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Which power supply, adapters, and included accessories ship with the retailer offer?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Will its audio, MIDI, and computer connections fit the intended setup without additional hardware?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
The UDO DMNO is a 44-key analog-hybrid synthesizer featuring two independent 4-voice synth engines that operate as an 8-voice polyphonic instrument or split into 2-part multitimbral configuration. It combines FPGA digital oscillators with analog voltage-controlled filters that can be arranged in parallel, series, or stereo modes, and includes eight play modes for flexible voice routing. The instrument offers binaural operation with four super voices, a 64-step sequencer, multi-mode arpeggiator, and functions as a USB audio interface. It arrives brand new.
Seller notes: UDO-Audio UDO DMNO - 8 Voice Polyphonic Binaural Analog-hybrid Synth - White — Synthesizer. U·D·O DMNO.
