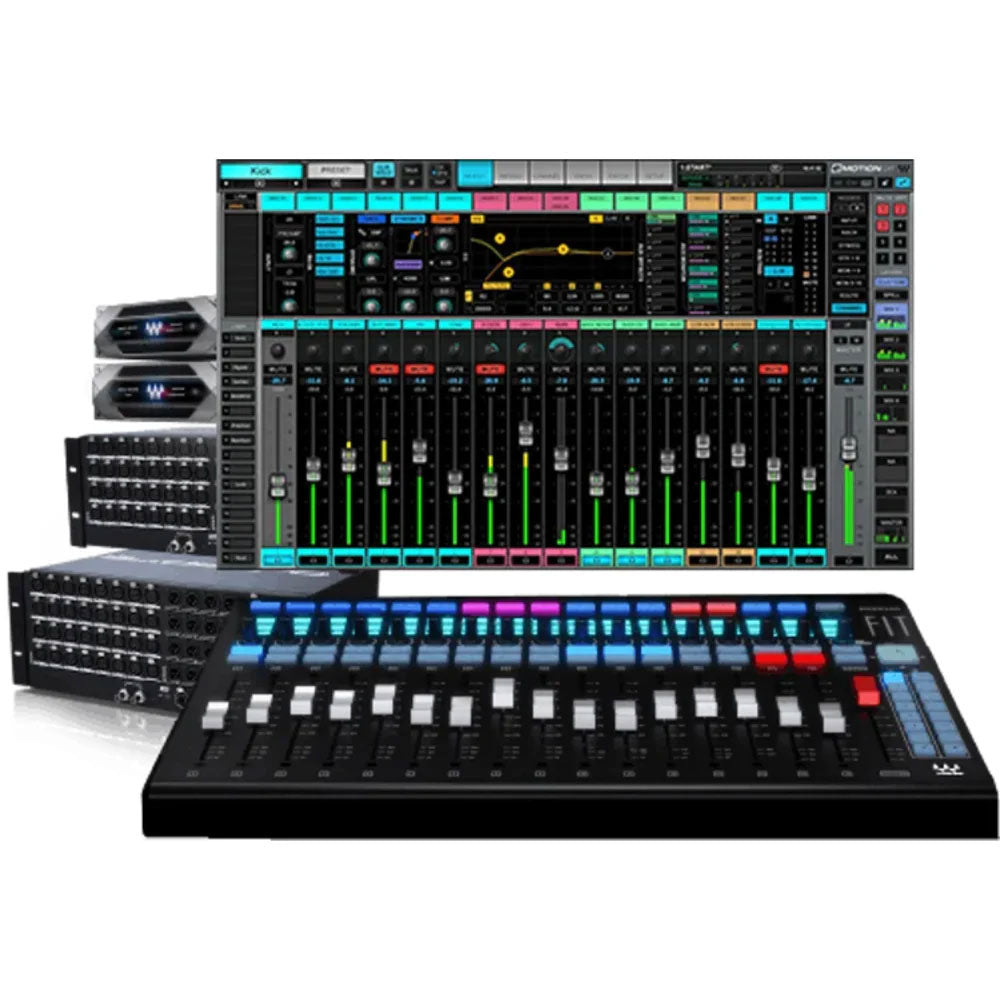

Waves eMotion LV1 Bundle 2 system components: the eMotion LV1 mixer software interface on a screen, a black Waves FIT control surface with 17 motorized faders and backlit color buttons, two rack-mount DSPRO StageGrid 4000 stageboxes with rows of XLR connectors, and two half-rack Waves SoundGrid units stacked behind.

WAVES eMotion LV1 Bundle 2 — Mixer

$28,455.00
$28,455.00
Skip to product information
Waves eMotion LV1 Bundle 2 system components: the eMotion LV1 mixer software interface on a screen, a black Waves FIT control surface with 17 motorized faders and backlit color buttons, two rack-mount DSPRO StageGrid 4000 stageboxes with rows of XLR connectors, and two half-rack Waves SoundGrid units stacked behind.
  • Waves eMotion LV1 Bundle 2 system components: the eMotion LV1 mixer software interface on a screen, a black Waves FIT control surface with 17 motorized faders and backlit color buttons, two rack-mount DSPRO StageGrid 4000 stageboxes with rows of XLR connectors, and two half-rack Waves SoundGrid units stacked behind.
  • Waves eMotion LV1 Bundle 2 system components: the eMotion LV1 mixer software interface on a screen, a black Waves FIT control surface with 17 motorized faders and backlit color buttons, two rack-mount DSPRO StageGrid 4000 stageboxes with rows of XLR connectors, and two half-rack Waves SoundGrid units stacked behind.
WAVES eMotion LV1 Bundle 2 — Mixer

WAVES eMotion LV1 Bundle 2 — Mixer

$28,455.00
$28,455.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Touring front-of-house and monitor engineers, houses of worship, and broadcast facilities that need a complete 64-channel plugin-based live mixing system with 64 remote digitally controlled preamps: the retailer describes it as built for touring professionals, houses of worship, and broadcast…
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Redundant power supply; 110 or 240 VAC, 50/60 Hz, 60 W

Bundle Contents

Mixer software Waves eMotion LV1 64-channel software mixer
Control surface Waves FIT Controller (motorized fader surface)
DSP server SoundGrid Extreme Server-C
Stageboxes 2× DSPRO StageGrid 4000 (64 digitally controlled mic preamps total)
Host computer Waves Axis Scope (SoundGrid-optimized)

eMotion LV1 Mixer Engine

Mixer channels 64 input channels (also available in 32- and 16-channel configurations)
Bus architecture Up to 8 stereo groups, 16 stereo auxes, L/R/C/M main busses, 8 stereo channel matrix
Plugin inserts per channel Eight inserts per channel for SoundGrid-compatible Waves and third-party plugins
Sample rates 44.1–96
Processing latency As low as 0.8 ms via SoundGrid server processing
Mix engine resolution 32-bit floating point
Host OS support Windows and Mac

SoundGrid Extreme Server-C

CPU Intel Core i7-10700 (10th generation)
RAM 8
Form factor 2U half-rack DSP unit
Latency 0.8 ms at 44.1–96 kHz
SoundGrid connector Neutrik EtherCON
Dimensions (W x H x D) 22 x 8.6 x 28.4
Weight 3.4

DSPRO StageGrid 4000 (each of 2)

Mic/line inputs 32 analog mic/line inputs, digitally controlled
Line outputs 16 analog line outputs
Digital I/O 4 stereo AES/EBU inputs, 4 stereo AES/EBU outputs (AES3 2009)
Headphone outputs Two headphone outputs with independent volume controls
Preamp gain range -4 to 60
Equivalent input noise -128 dBu (60 dB gain, A-weighted, 150 ohms)
Input dynamic range 115 dB (-60 dBFS, 20 dB gain, 1 kHz, A-weighted)
Sample rates 44.1 / 48 / 88.2 / 96
SoundGrid interface Gigabit Ethernet, Neutrik EtherCON connector
Word clock IN/OUT, BNC, 75 ohms, 5 V TTL
Power supply Redundant power supply; 110 or 240 VAC, 50/60 Hz, 60 W
Form factor 4U rack-mountable chassis
Dimensions (H x W x D) 176 mm (4RU) x 430 mm (19-inch rack) x 300 mm (excluding connectors)
Weight 7.89

Waves FIT Controller

Faders 17 touch-sensitive 100 mm motorized faders
Encoders 17 clickable rotary encoders
Buttons 17 RGB Select, 17 Solo, 17 Mute, 16 Layers/Utility buttons; 1 RGB tap-tempo pad
Displays 17 x 1.14-inch TFT LCD scribble strips
Connectivity 1 USB 2.0 high-speed port, 1 DC input, 2 USB LED light ports
Power DC 12V/2.5A adapter, center positive
Mounting Mountable in a standard 19-inch rack
Dimensions (W x D x H) 44.9 x 28.4 x 6.9
Weight 4.28

Waves Axis Scope Computer

CPU Intel i5-10600
RAM 16
Storage 256 GB SSD
Operating system Windows 10
Ports 6 USB2/USB3, 1 HDMI, 1 DisplayPort, 1 external HDMI dongle, 1 SoundGrid EtherCON port, 1 RJ45 Ethernet port
Form factor 2U half-rack, rack-mountable case
Dimensions (L x H x D) 22 x 8.6 x 28.4
Weight 3.4

Fit and constraints

Touring front-of-house and monitor engineers, h… · Redundant power supply; 110 or 240 VAC, 50/60 Hz, 60 W

Intended use

Use Touring front-of-house and monitor engineers, houses of worship, and broadcast facilities that need a complete 64-channel plugin-based live mixing system with 64 remote digitally controlled preamps: the retailer describes it as built for touring professionals, houses of worship, and broadcast environments, and the LV1 engine supports FOH, monitor, broadcast, and recording workflows at 44.1-96 kHz with eight plugin inserts per channel.
Not for Anyone who wants a traditional all-in-one hardware console: the LV1 mixer itself is software running on the included Axis Scope computer, with the FIT surface providing only 17 motorized faders of tactile control. Small-format users are also over-served — Waves offers 16- and 32-channel LV1 configurations, and this system's two 4U stageboxes plus server, computer, and controller represent a full rack of touring hardware. Buyers who want Waves' newer integrated LV1 Classic console (built-in 21.5-inch touchscreen and preamps) are looking at a different product.

Constraints

PowerRedundant power supply; 110 or 240 VAC, 50/60 Hz, 60 W
Controls"Bundle 2" is verified retail listing's own bundle name, not a Waves catalog SKU — the ...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Waves eMotion LV1 Bundle 2 is a complete SoundGrid-based live mixing system that pairs the eMotion LV1 64-channel software mixer with a Waves FIT motorized-fader control surface, a SoundGrid Extreme Server-C for plugin processing, two DSPRO StageGrid 4000 stageboxes, and a Waves Axis Scope host computer. The LV1 mixer runs at sample rates from 44.1 kHz to 96 kHz, offers eight plugin inserts per channel, and offloads all plugin processing to the SoundGrid server over a gigabit Ethernet network. Each StageGrid 4000 stagebox provides 32 digitally controlled mic/line inputs, 16 analog line outputs, AES/EBU digital I/O, and a redundant power supply in a 4U chassis, giving the system 64 remote preamps in total. The FIT controller adds 17 touch-sensitive 100 mm motorized faders with per-channel encoders, displays, and mute/solo/select buttons over a USB connection. The system is intended for front-of-house, monitor, broadcast, and recording applications.
