WAVES eMotion LV1 Classic 64-Channel Digital Mixer
WAVES eMotion LV1 Classic 64-Channel Digital Mixer
Specifications
General
| Brand | Waves |
|---|---|
| Model | eMotion LV1 Classic |
| Console type | Live digital mixing console for front-of-house, monitor, and broadcast applications |
| Manufacturer part number | USW379-700C-391 |
| Warranty | 12 months, with additional 12-month extension upon registration |
| Certifications | CE marked, UL listed, FCC and CB compliant |
Mix Engine
| Input channels | 64 mono/stereo input channels |
|---|---|
| Mix buses | 44 mono/stereo buses: 8 groups, 24 auxes, 8 matrices, 3 master, cue |
| Processing | SoundGrid DSP server, double-precision 32-bit floating point |
| Sample rates | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz |
| Latency | As low as 0.8 ms |
| Plugin slots | 8-slot rack hosts 8 plugins per input channel + all mix channels |
| DCAs | 16 Link DCAs with Spill function |
| Mute groups | 8 |
| Scenes | Up to 1000 scenes with Recall Safe and Scope Filters |
| Channel expansion | Optional expansion to 80 channels (160 inputs) / 52 buses |

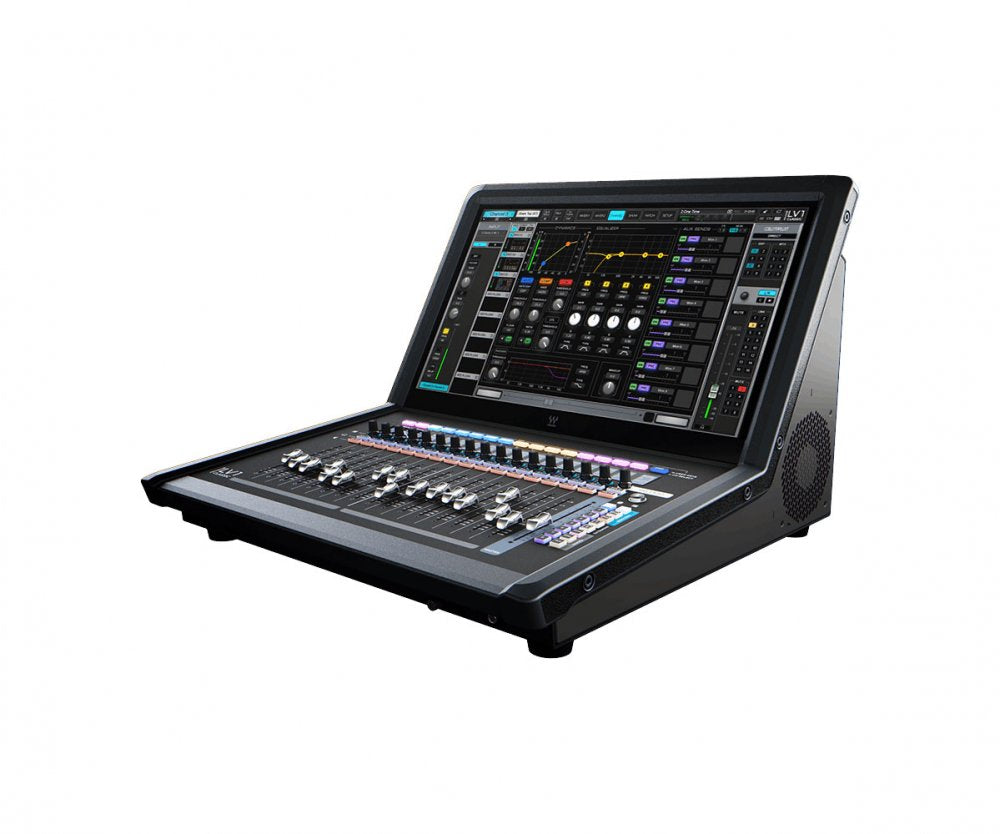

Control Surface
| Touchscreen | 21.5" multi-touch screen, HD 1920x1080, brightness control 100-1000 nits |
|---|---|
| Faders | 16+1 motorized 100 mm Alps faders |
| Encoders | 16+1 precision encoders with mini-displays, per-channel LCD metering, Select/Mute/Solo |
| Switches | 68 rubber toggle switches |
| Keys | 8 layer keys, 8 utility keys, tempo pad, 16+2 user-defined keys |

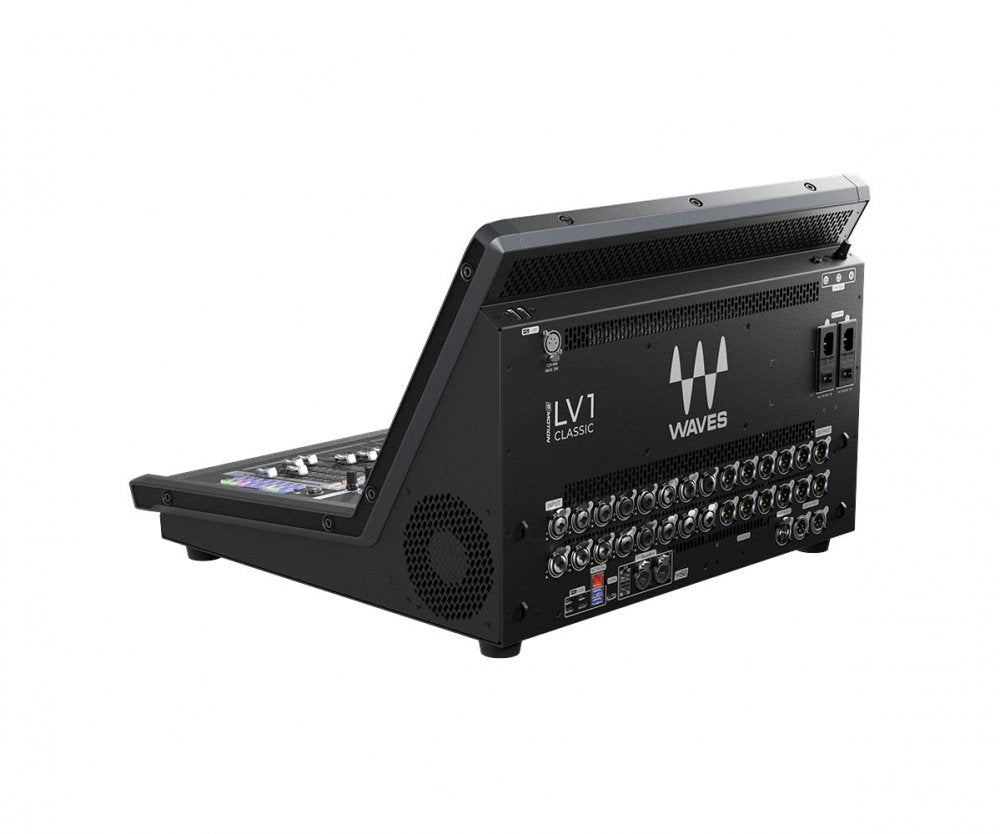

Inputs & Outputs
| Mic/line inputs | 16 digitally controlled mic/line inputs on XLR/TRS combo connectors with Waves Signature Preamps |
|---|---|
| Line outputs | 12 line-level outputs on XLR connectors |
| AES3 | Stereo AES3 input with sample-rate conversion and two stereo AES3 outputs on XLR; 110-ohm impedance |
| Headphone outputs | Hi-power headphone output on 1/4" jack and minijack with gain control |
| SoundGrid ports | 4-port 1 Gbit SoundGrid Ethernet switch: 2 EtherCON + 2 RJ45 |
| Network | RJ45 connector for network and internet connections, 1 Gbit Ethernet |
| USB | 8 USB-A ports: 6x USB 2 + 2x USB 3 |
| External display | HDMI port supporting HD 1920x1080 |
| Lamp outlet | LED lamp DC power outlet on XLR4 connector |
Audio Performance
| Input gain | Adjustable -3 dB to +60 dB in 1 dB steps, default +20 dB |
|---|---|
| Frequency response (input) | +/-0.1 dB 20 Hz-20 kHz; +/-1.0 dB 10 Hz-40 kHz (+18 dBu input) |
| Dynamic range | >110 dB (20 kHz BW, 0 dB gain) |
| Equivalent input noise | -130 dBu EIN (gain 60 dB, 0-ohm source, A-weighted) |
| THD+N (input) | -100 dB (997 Hz, +18 dBu source, 0 dB gain, 20 kHz BW) |
| Phantom power | 48V phantom power switchable per input |
| Harmonic enhancer | HMX, switchable per input |
| Max output level | +18 dBu or +24 dBu, switchable per output |
| Output impedance (line) | 150 |
Software & Recording
| Included plugins | Waves Tune Real-Time, F6 Dynamic EQ, eMo Q4 EQ, eMo D5 Dynamics, eMo F4 Filter, GEQ, X-FDBK, Primary Source Expander, R-Comp, R-Bass, H-Delay, Doubler, R-Verb, TrueVerb, GTR3, Magma Tube Channel Strip, eMo Generator |
|---|---|
| Plugin expandability | Supports upgrades to over 160 additional Waves plugins |
| Local recording | Record 16 tracks locally to USB; stereo playback from USB |
| Remote recording | 128 tracks to/from remote computers |
| Customization | Custom colors per channel and custom mixing-layout options |
Physical & Power
| Dimensions (W x D x H) | 561 mm (W) x 561 mm (D) x 402 mm (H) / 22.1" x 22.1" x 15.8" |
|---|---|
| Weight | 17.3 kg (38.1 lbs) |
| Construction | Sheet metal chassis with surrounding plastic frame |
| Power supply | Dual power supply for redundancy; two AC inlet modules with IEC mains connectors, fuses, and on/off switches; 110V/220V 2A/1A auto-switching |
| Operating temperature | 0-35°C (32-95°F) |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

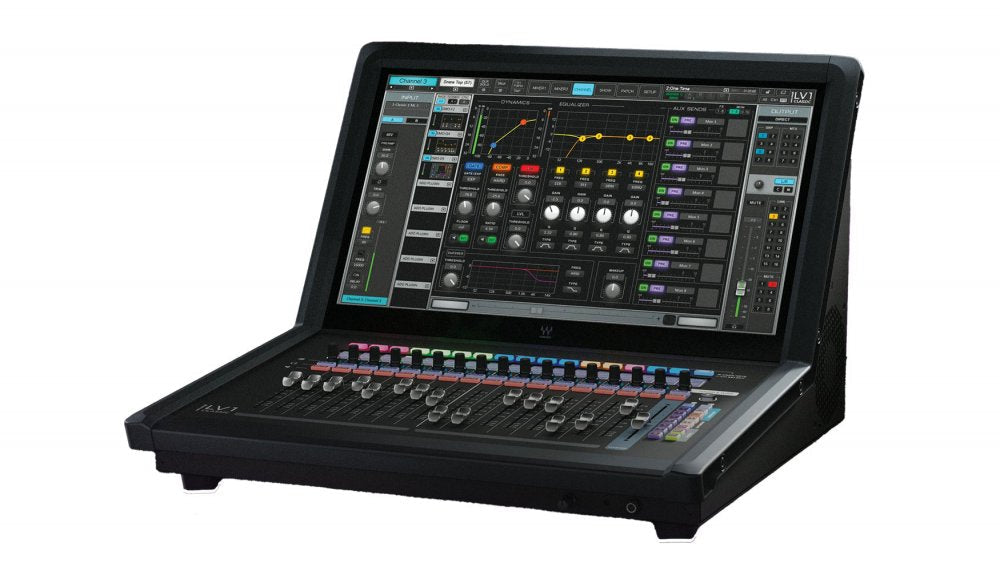

The Waves eMotion LV1 Classic is a digital mixing console for live sound, including front-of-house, monitor, and broadcast applications. It processes 64 mono/stereo input channels and 44 mix buses (8 groups, 24 auxes, 8 matrices, 3 masters, cue) on a built-in SoundGrid DSP server with a double-precision 32-bit floating-point engine at 44.1-96 kHz and latency as low as 0.8 ms. The control surface combines a 21.5-inch multi-touch screen with 16+1 motorized 100 mm Alps faders, 16+1 encoders with mini-displays, and 68 rubber toggle switches. Onboard I/O includes 16 digitally controlled mic/line inputs with Waves Signature Preamps, 12 line outputs, AES3 stereo input and two stereo AES3 outputs, with channel expansion over SoundGrid interfaces on a 1 Gb Ethernet network. Seventeen Waves plugins are pre-installed, and the console records 16 tracks locally to USB or 128 tracks to and from remote computers.
