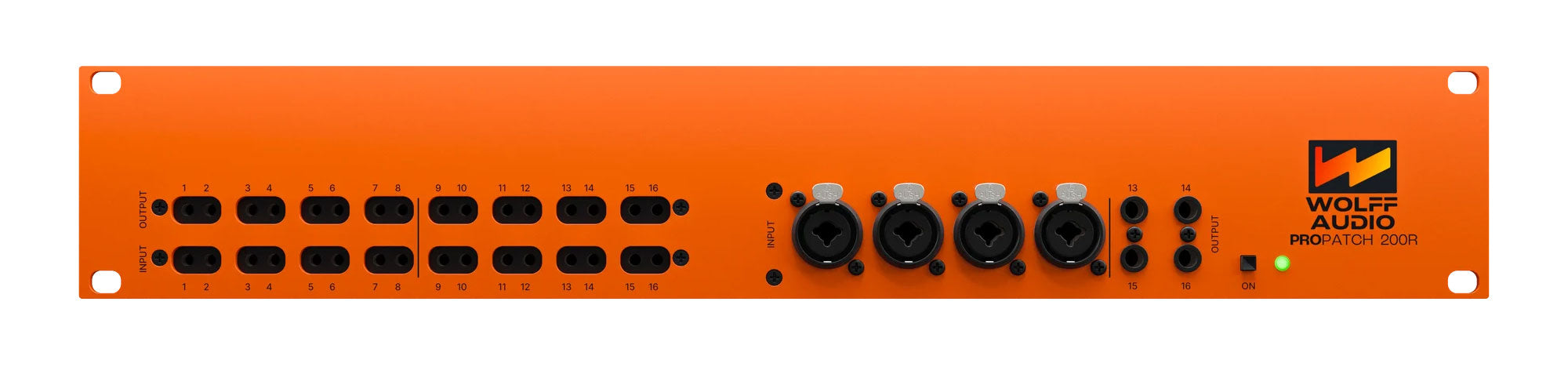

A 19-inch 2U rackmount Wolff Audio ProPatch 200R analog patchbay with rows of TT patch points and XLR/TRS combo jacks across its front panel.

WOLFF AUDIO ProPatch 200R — Patchbay

$19,985.00
$19,985.00
Skip to product information
A 19-inch 2U rackmount Wolff Audio ProPatch 200R analog patchbay with rows of TT patch points and XLR/TRS combo jacks across its front panel.
  • A 19-inch 2U rackmount Wolff Audio ProPatch 200R analog patchbay with rows of TT patch points and XLR/TRS combo jacks across its front panel.
  • A 19-inch 2U rackmount Wolff Audio ProPatch 200R analog patchbay with rows of TT patch points and XLR/TRS combo jacks across its front panel.
WOLFF AUDIO ProPatch 200R — Patchbay

WOLFF AUDIO ProPatch 200R — Patchbay

The Wolff Audio ProPatch 200R is a software-controlled 2U analog patchbay with 100 inputs and 100 outputs routed by latching relays, supporting mic through timecode signals with 48V phantom power, configurable via the Wolff Hound app across multiple platforms.

$19,985.00
$19,985.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Professional and commercial studios that need large-scale (100x100), software-recallable analog signal routing across mixed formats (DB25, TT, XLR, TRS) with a relay-based straight-wire path and no active electronics coloring the signal.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Latching telecom-grade relays · 48V pass-through with instant switching

I/O & Routing

Total Patch Points 200
I/O Configuration 100 analog inputs x 100 analog outputs
Routing Any-to-any, software-controlled

Signal Path

Architecture 100% analog, straight-wire, relay-based
Relay Type Latching telecom-grade relays
Active Electronics in Signal Path None

Signal Support

Supported Signal Types Mic, line, CV, MIDI, digital audio, timecode
Phantom Power 48V pass-through with instant switching

Front Panel Connectors

XLR/Quarter-Inch Combo Inputs 4
Quarter-Inch TRS Outputs 4
TT Inputs 16
TT Outputs 16

Rear Panel Connectors

Rear Input Options DB25, TT, XLR combo jack, TRS
Rear Output Options DB25, TT, quarter-inch TRS

Physical & Format

Rack Mount 19-inch standard
Rack Units 2U
Enclosure Steel
Cooling Fanless

Control & Software

Control Software Wolff Hound app (macOS, Windows, iPadOS)
Connectivity USB-C, Ethernet, Wi-Fi
Software Features Preset recall, drag-and-drop device chaining, A/B comparisons

Fit and constraints

Professional and commercial studios that need l… · 48V pass-through with instant switching

Intended use

Use Professional and commercial studios that need large-scale (100x100), software-recallable analog signal routing across mixed formats (DB25, TT, XLR, TRS) with a relay-based straight-wire path and no active electronics coloring the signal. Its 48V phantom pass-through and mic/line/CV/MIDI/timecode support suit rigs that reroute mic pres, outboard, and sync signals frequently and want saved presets rather than repatching by hand.
Not for Home and project studios with modest routing needs or tight budgets, anyone who only needs a simple passive TT or 1/4-inch bay, and setups that route audio purely over networked digital protocols (e.g., Dante/AVB) rather than analog wiring. Buyers who require published, quantified performance figures should also wait, since the listed specs are qualitative.

Constraints

Power48V pass-through with instant switching
ControlsSourcing is thin and conflicting. The value is documented on a single retailer page (ec...

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

The Wolff Audio ProPatch 200R is a software-controlled analog patchbay in a 2U 19-inch rackmount format. It provides 200 patch points configured as 100 analog inputs by 100 analog outputs, with any-to-any routing handled by latching relays and no active electronics in the signal path. It passes mic, line, CV, MIDI, digital audio, and timecode signals and supports 48V phantom power pass-through. Front-panel connections include XLR/quarter-inch combo inputs, quarter-inch TRS outputs, and TT jacks, while rear-panel I/O uses DB25, TT, XLR, and TRS connectors. Routing is configured through the Wolff Hound application for macOS, Windows, and iPadOS over USB-C, Ethernet, or Wi-Fi.
