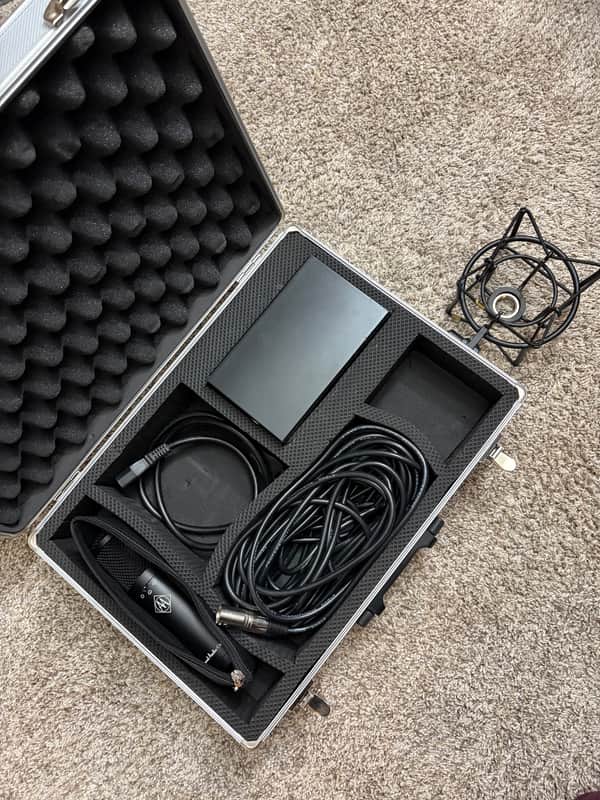

Advanced Audio CM800T Tube Condenser Microphone
Advanced Audio CM800T Tube Condenser Microphone
Advanced Audio CM800T Tube Condenser Microphone — sourced facts: Microphone type: Large-diaphragm 3-pattern tube condenser microphone; Capsule: 32 mm double-diaphragm K67-type capsule; Pickup patterns: Selectable omni, cardioid, and figure-eight; Tube: Military-spec GE/JAN 5654W tube.
Specifications
| Microphone type | Large-diaphragm 3-pattern tube condenser microphone |
|---|---|
| Capsule | 32 mm double-diaphragm K67-type capsule |
| Pickup patterns | Selectable omni, cardioid, and figure-eight |
| Tube | Military-spec GE/JAN 5654W tube |
| Circuit | Class A single-stage tube circuit |
| Transformer | Dual-bobbin transformer with bi-metal laminations |
| Pad | Switched -10 dB pad |
|---|---|
| Rumble filter | 100 Hz switchable roll-off |
| Impedance | Less than 200 ohms |
| Noise | Less than 14 dB A-weighted |
| Distortion/SPL | Less than 1% at 128 dB without pad; 138 dB with pad |
| Output | Greater than 10 dBu with less than 0.5% distortion at 20 Hz–20 kHz |
Fit and constraints
Intended use
Constraints
To use it
Questions
Can you confirm exactly what is included in the sale and show it in current photos?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Are there any functional issues, repairs, or missing parts not shown in the listing?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Can you provide close-up photos of wear points, serial numbers, and any modifications?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
I enjoy these C-800G clones so much, I had purchased a backup!
