AMS Neve 1073LB 500 Series Microphone Preamplifier
AMS Neve 1073LB 500 Series Microphone Preamplifier — sourced facts: Device Type: Microphone preamplifier rack module; Compatibility: API 500 series Lunchbox; Impedance: 300 ohm or 1200 ohm switchable; Gain Range: -80 dB to -20 dB.
$1,232.99
Sale price
$1,232.99
Regular price
Condition
Mint
Specs
Verified model facts
Specifications
| Device Type | Microphone preamplifier rack module |
|---|---|
| Compatibility | API 500 series Lunchbox |
| Impedance | 300 ohm or 1200 ohm switchable |
| Gain Range | -80 dB to -20 dB |
| Gain Step | 5 dB |
| Maximum Output Level | +28 dBu |
| Output Impedance | 75 ohm at 1 kHz |
| Frequency Response | ±0.5 dB 20 Hz to 20 kHz |
| High Frequency Roll-off | -3 dB at 40 kHz |
| Total Harmonic Distortion | 0.07% from 50 Hz to 10 kHz at +20 dBu output |
| Equivalent Input Noise | Better than -125 dBu at 60 dB gain |
| Noise Level | -82 dBu at all line gain settings |
| Height | 132 mm |
|---|---|
| Width | 38 mm |
| Depth | 145 mm |
| Weight | 1.1 kg |
| Phantom Power | +48 V switchable |
|---|
Fit and constraints
Intended use
Constraints
Power+48 V switchable
Board space38 mm
To use it
Description

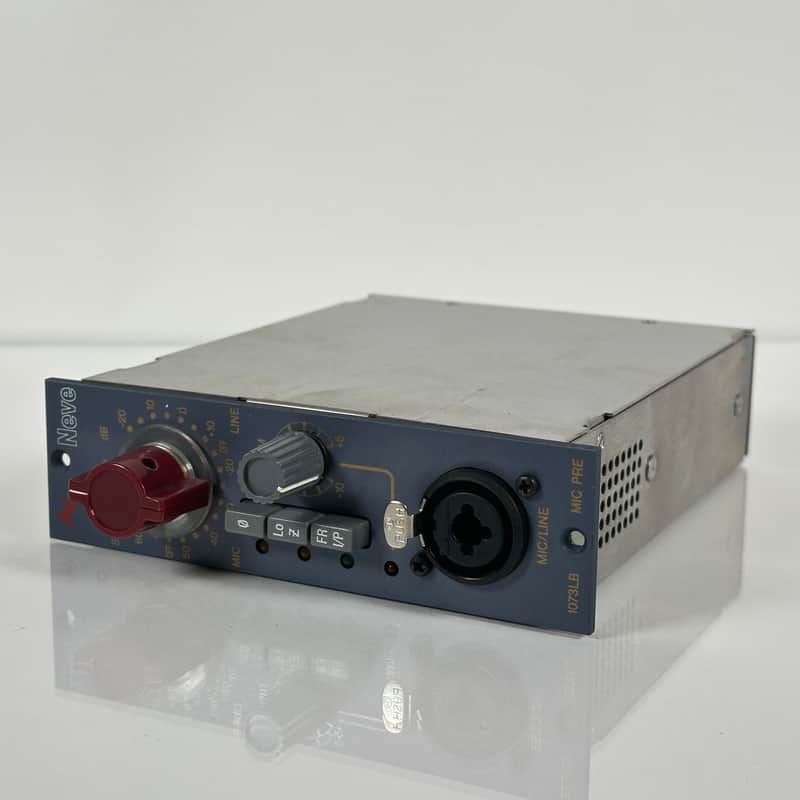

The AMS Neve 1073LB is a 500 Series microphone preamplifier in mint condition. This unit is designed for professional audio recording and mixing applications.
