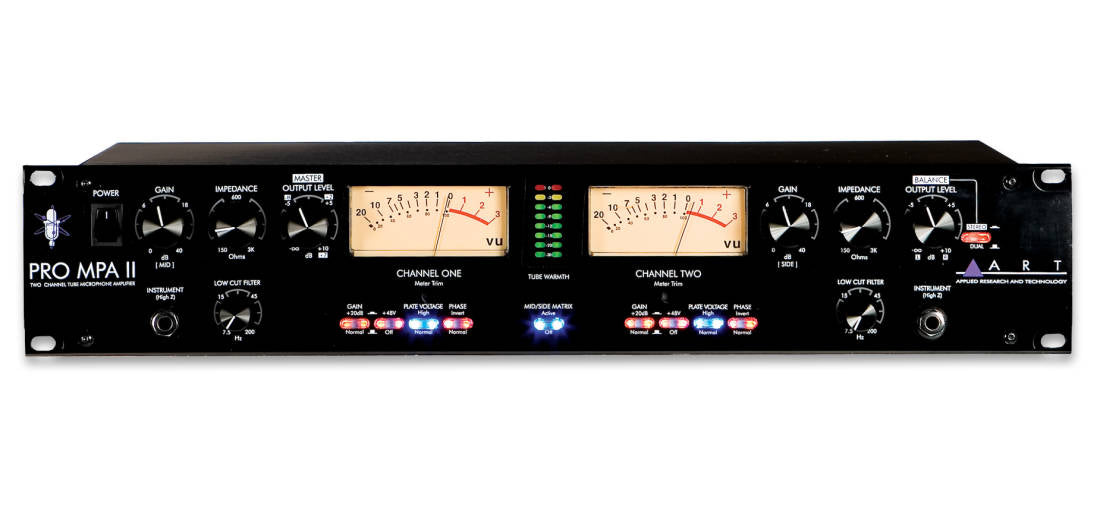

ART Pro Audio Pro MPA-II Two Channel Studio Mic Preamp
ART Pro Audio Pro MPA-II Two Channel Studio Mic Preamp
ART Pro Audio Pro MPA-II Two Channel Studio Mic Preamp — sourced facts: Input Impedance: 150-3000 Ω Adjustable (XLR), > 800K Ω (Instrument); Maximum Input Level: +19dBu; Maximum Output Level: +27dBu (XLR); Maximum Gain: 75dB.
Specifications
| Input Impedance | 150-3000 Ω Adjustable (XLR), > 800K Ω (Instrument) |
|---|---|
| Maximum Input Level | +19dBu |
| Maximum Output Level | +27dBu (XLR) |
| Maximum Gain | 75dB |
| Frequency Response | 15Hz to 48kHz (+0, -1dB) @ Normal Plate Voltage, 15Hz to 120kHz (+0, -1dB) @ High Plate Voltage |
| Total Harmonic Distortion | <0.005% (typical) |
| Equivalent Input Noise | 129dBu (XLR, “A” Weighted) |
| CMRR | > 90dB |
| Audio resolution | 48kHz |
| Dimensions (HWD) | 3.50″ x 19.0″W x 8.75″, (8.8cm x 48.2cm x 22.2cm) |
|---|---|
| Weight | 10.5 lbs (4.5 kg) |
| Dimensions note | 8.8cm x 48 |
| Format | 3U |
| Power Requirements | USA – 105 to 125 VAC / 60 Hz Export Units Configured for Country of Destination |
|---|---|
| Power | 125 VAC / 60 Hz Export Units Configur |
Fit and constraints
Intended use
Constraints
To use it
Comparison
Questions
Can you confirm the core specs that matter for compatibility in this setup?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is this still available and has anything changed since the listing was posted?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
The ART Pro Audio Pro MPA-II is a two-channel studio microphone preamp designed for professional recording applications. This brand new unit represents the current generation of ART's microphone preamp line.
Seller notes: The new ART ProMPA II is the next generation in affordable high performance microphone preamp technology.
