ART Tube MP Studio Tube Microphone Preamp 2009 - Present - Black
$54.80
Sale price
$54.80
Regular price
Skip to product information
ART Tube MP Studio Tube Microphone Preamp 2009 - Present - Black
ART Tube MP Studio Tube Microphone Preamp 2009 - Present - Black — sourced facts: Inputs: XLR (Balanced), 1/4" TS; Outputs: XLR (Balanced), 1/4" TS; Input Impedance: 2 kΩ XLR, 840 kΩ 1/4”; Output Impedance: 600Ω XLR, 300Ω 1/4".
$54.80
Sale price
$54.80
Regular price
Condition
Good
Specs
Verified model facts
Specifications
| Inputs | XLR (Balanced), 1/4" TS |
|---|---|
| Outputs | XLR (Balanced), 1/4" TS |
| Input Impedance | 2 kΩ XLR, 840 kΩ 1/4” |
| Output Impedance | 600Ω XLR, 300Ω 1/4" |
| Maximum Input Level | +14 dBu XLR, +22 dBu 1/4" |
| Maximum Output Level | +14 dBu XLR, +22 dBu 1/4" |
| Maximum Gain | 50 dB - 60 dB |
| Frequency Response | 10 Hz - 30 kHz, +/- 0.5 dB |
| Total Harmonic Distortion | <0.1% (typical) |
| Equivalent Input Noise | -129 dBu to -105 dBu |
| CMRR | >75 dB (Typical @ 1 kHz) |
| Audio resolution | 30 kHz |
| Dimensions | 5” x 5.5” x 2” (12.7 cm x 14 cm x 5.1 cm) |
|---|---|
| Weight | 1.5 lbs / 454 g |
| Dimensions note | 12.7 cm x 14 cm x 5 |
| Width (HP) | 4hP |
| Format | 1u |
| Power Requirements | Input 100-240V AC~50/60Hz Output 12V DC @ ≥ 800mA |
|---|---|
| Power | 240V AC~50/60Hz Output 12V DC @ ≥ 800 |
| Current draw | 800mA Dimensions 5” x 5 |
Fit and constraints
Intended use
Constraints
PowerInput 100-240V AC~50/60Hz Output 12V DC @ ≥ 800mA
Board space4hP
To use it
Description

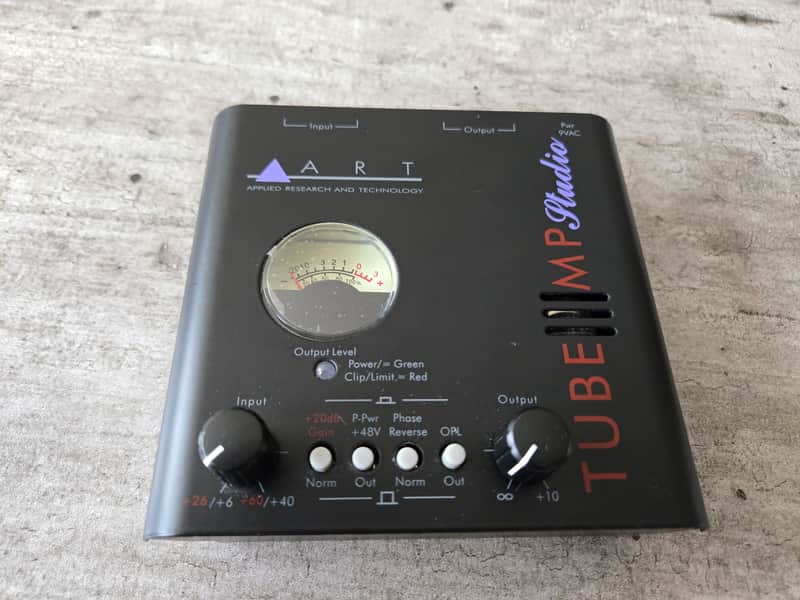

The ART Tube MP Studio is a tube microphone preamp with all functions recently tested and confirmed working. The tube retains good tone and has considerable remaining life. The unit shows cosmetic wear on the back panel but operates in good condition.
Seller notes: - All functions recently tested and working well - Tube sounds good, has a lot of life left - Scratches and scuffs on back.
