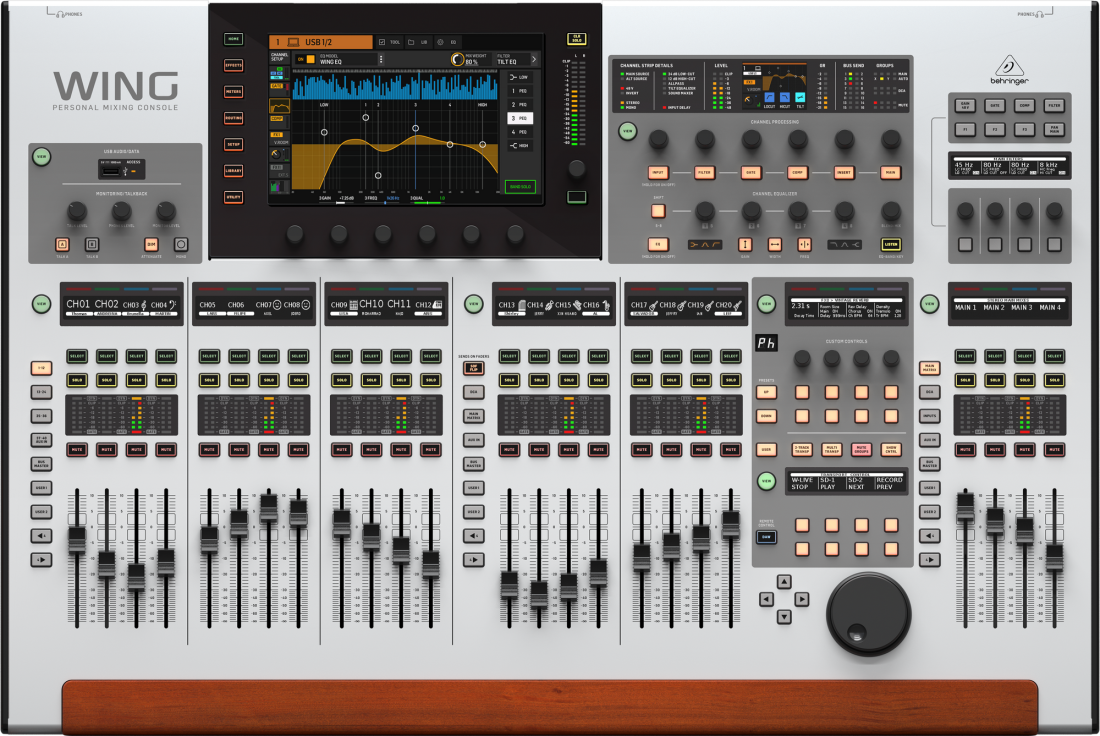

Behringer Wing 48-Channel 28-Bus Digital Mixer with Touch Screen
Behringer Wing 48-Channel 28-Bus Digital Mixer with Touch Screen
Behringer Wing 48-Channel 28-Bus Digital Mixer with Touch Screen — sourced facts: Audio resolution: 44.1 kHz; Connectivity: USB MIDI; Crosstalk rejection @ 1 kHz, adjacent channels: 100 dB; Output level, XLR connectors (nominal / maximum): +4 dBu / +21 dBu.
Specifications
| Audio resolution | 44.1 kHz |
|---|---|
| Connectivity | USB MIDI |
| Crosstalk rejection @ 1 kHz, adjacent channels | 100 dB |
| Output level, XLR connectors (nominal / maximum) | +4 dBu / +21 dBu |
| Non-clip maximum input level, TRS connectors | +16 dBu |
| Aux output level, TRS (nominal / maximum) | +4 dBu / +16 dBu |
| Phones output impedance / maximum output level | 500 mW @ 75 ohm / +18 dBu |
| Main screen | 10.1" TFT LCD, 1280 x 800 px, capacitive touch |
| Main screen swivel, continuous adjustment | 15°- 60° |
| Channel editing screen | 2.4" TFT LCD, 320 x 240 px |
| Main stereo meter | 18 segment (-60 dB to clip) |
| 100 mm motor faders | 12 + 8 + 4 |
| Dimensions (HxWxD) | 201 x 870 x 575 mm (7.9 x 34.3 x 22.6") |
|---|---|
| Weight | 24 kg (52.8 lbs) |
| Dimensions note | 100 mm faders in 3 separate, fully configurabl |
| Switch-mode power supply | Auto-ranging 100-240 VAC (50/60 Hz) |
|---|---|
| Power consumption | 130 W |
| Power | 5 variable plug-in processing slo |
Fit and constraints
Intended use
Constraints
To use it
Comparison
Questions
Can you confirm the core specs that matter for compatibility in this setup?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is this still available and has anything changed since the listing was posted?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
48-Channel, 28-Bus Full Stereo Digital Mixing Console with 24-Fader Control Surface and 10" Touch Screen The Personal Mixing Console The WING control surface utilizes a large capacitive touchscreen interface with touch-sensitive rotary controls for a new ease of operation.
