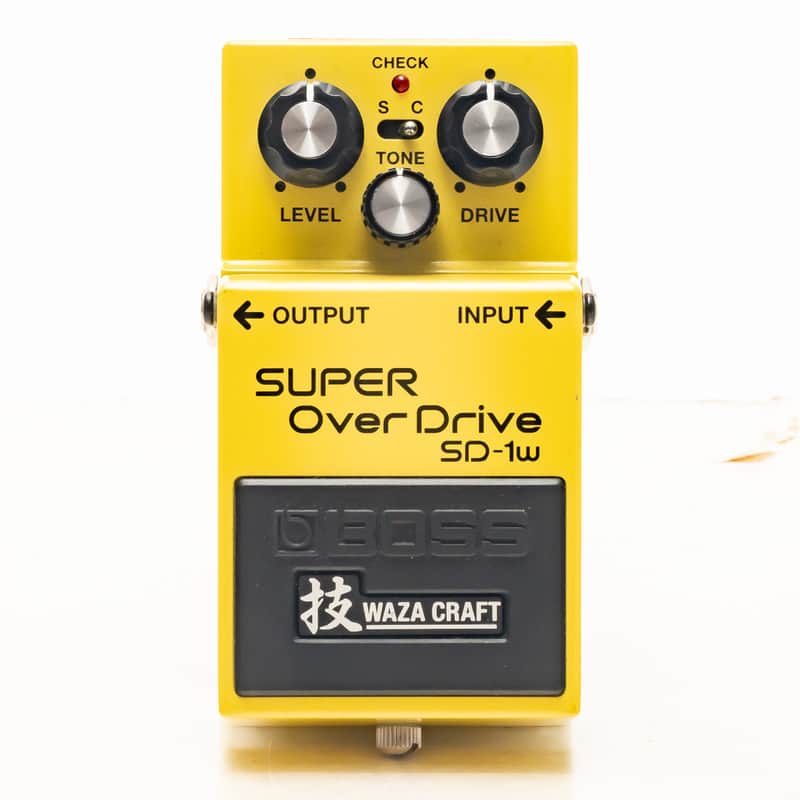

A bright yellow Boss SD-1W Super Overdrive compact guitar pedal, showing three top-mounted knobs (Level, Tone, Drive), a small mode switch, a CHECK indicator LED, and a large footswitch pedal.

Boss SD-1w Super Overdrive Waza

$163.03
$163.03
Skip to product information
A bright yellow Boss SD-1W Super Overdrive compact guitar pedal, showing three top-mounted knobs (Level, Tone, Drive), a small mode switch, a CHECK indicator LED, and a large footswitch pedal.
  • A bright yellow Boss SD-1W Super Overdrive compact guitar pedal, showing three top-mounted knobs (Level, Tone, Drive), a small mode switch, a CHECK indicator LED, and a large footswitch pedal.
  • A bright yellow Boss SD-1W Super Overdrive compact guitar pedal, showing three top-mounted knobs (Level, Tone, Drive), a small mode switch, a CHECK indicator LED, and a large footswitch pedal.
Boss SD-1w Super Overdrive Waza

Boss SD-1w Super Overdrive Waza

The Boss SD-1W Super Overdrive is a compact guitar effects pedal in the Waza Craft series, built with all-discrete analog circuitry and made in Japan.

$163.03
$163.03
Condition Very Good
Specs Verified model facts
Use Guitarists who want the classic Boss SD-1 mid-focused overdrive but with an upgraded, all-discrete analog circuit and a second Custom mode that adds more gain and a wider tonal range.
In stock Ask a question

Specifications

Super Overdrive · 9V battery or PSA-series AC adaptor (sold separately)

Overview

Pedal Type Super Overdrive
Series Waza Craft
Circuitry All-discrete analog
Country of Manufacture Japan
Warranty 5-year BOSS warranty

Controls & Modes

Controls Pedal switch, Mode switch, Level, Tone, Drive
Standard Mode Standard: classic SD-1 sound
Custom Mode Custom: extended tonal range and gain
Indicator CHECK indicator (doubles as battery check)
Connectors Input, Output, DC In jacks

Audio

Nominal Input Level -20 dBu
Nominal Output Level -20 dBu
Input Impedance 1 MΩ
Output Impedance 1 kΩ
Recommended Load Impedance 10 kΩ or greater

Power

Power Supply 9V battery or PSA-series AC adaptor (sold separately)
Current Draw 15 mA
Battery Life (Alkaline) Approx. 42 hours (alkaline)
Battery Life (Carbon-zinc) Approx. 25 hours (carbon-zinc)

Physical

Width 73 mm (2-7/8 in)
Depth 129 mm (5-1/8 in)
Height 59 mm (2-3/8 in)
Weight 430 g (1 lb)

In the Box

Included Accessories Leaflet, carbon-zinc 9V battery

Fit and constraints

Guitarists who want the classic Boss SD-1 mid-f… · 9V battery or PSA-series AC adaptor (sold separately) · 73 mm (2-7/8 in)

Intended use

Use Guitarists who want the classic Boss SD-1 mid-focused overdrive but with an upgraded, all-discrete analog circuit and a second Custom mode that adds more gain and a wider tonal range. Works well as an always-on transparent-ish boost/drive or to push a tube amp harder.
Not for Players who only need the plain original SD-1 sound (the standard SD-1 is cheaper and covers Standard mode), anyone wanting a true-bypass pedal, or those needing high-gain distortion or a built-in noise gate/EQ beyond a single Tone knob.

Constraints

Power9V battery or PSA-series AC adaptor (sold separately)
Board space73 mm (2-7/8 in)
ControlsThe AC adaptor is not included (only a carbon-zinc battery and leaflet ship in the box)...

To use it

Description

Product details

The Boss SD-1W Super Overdrive is a compact guitar effects pedal in the Waza Craft series, built with all-discrete analog circuitry and made in Japan. It has Level, Tone, and Drive knobs plus a two-position mode switch: Standard mode reproduces the classic SD-1 overdrive sound, and Custom mode adds an extended tonal range and higher gain. The pedal runs on a 9V battery or an optional PSA-series AC adaptor and draws 15 mA. It uses the standard Boss compact enclosure with a CHECK indicator that doubles as a battery-check LED.
