Korg ARP 2600 M Semi-Modular Synthesizer versión 2025 - Negro
Korg ARP 2600 M Semi-Modular Synthesizer versión 2025 - Negro
Korg ARP 2600 M Semi-Modular Synthesizer versión 2025 - Negro — sourced facts: 2021.01.18: ARP 2600 M - The most iconic synth for the Modern musician; Operating temperature range: 0 – +40 °C (non‐condensing); Maximum Polyphony: 2 voices for duo phonic; normally monophonic; Frequency range: Approx. 0.03 Hz &nd
Specifications
| 2021.01.18 | ARP 2600 M - The most iconic synth for the Modern musician |
|---|---|
| Operating temperature range | 0 – +40 °C (non‐condensing) |
| Maximum Polyphony | 2 voices for duo phonic; normally monophonic |
| Frequency range | Approx. 0.03 Hz – 30 Hz (low freq. mode) Approx. 10 Hz - 10 kHz (audio mode) |
| Resonance | 1/2 - self oscillate |
| Noise generator | Noise spectrum types (white and pink) |
| RING MODULATOR Type | Analog multiplier |
| Input signal (Internally connected) | VCO-1 sawtooth wave, VCO-2 sine wave |
| SAMPLE & HOLD Sampled signal | Noise (internally connected) |
| Maximum output level | +9 dBu @ 10 kΩ load |
| Output impedance | 1.2 kΩ |
| Side Panel Connector | φ6.3 mm monaural phone jack |
| Pulse width | 10% – 90% |
|---|---|
| Dimensions (W × D × H) | 520 × 129 × 311 mm / 20.5 x 5 x 12.2 inches, |
| VCO-1 (Voltage Controlled Oscilator 1) Waveforms | Sawtooth, square |
|---|---|
| Voltage controlled response | 1V/oct. |
| VCO-3 (Voltage Controlled Oscilator 3) Waveforms | Sawtooth, pulse (dynamic pulse) |
| VCF (Voltage Controlled Filter) Type | Low-pass (TYPE I : early 24 dB/oct., TYPE II: late 24 dB/oct.) |
| Power supply | AC power supply terminal (KA320) |
| Power consumption | 13W |
Fit and constraints
Intended use
Constraints
To use it
Description

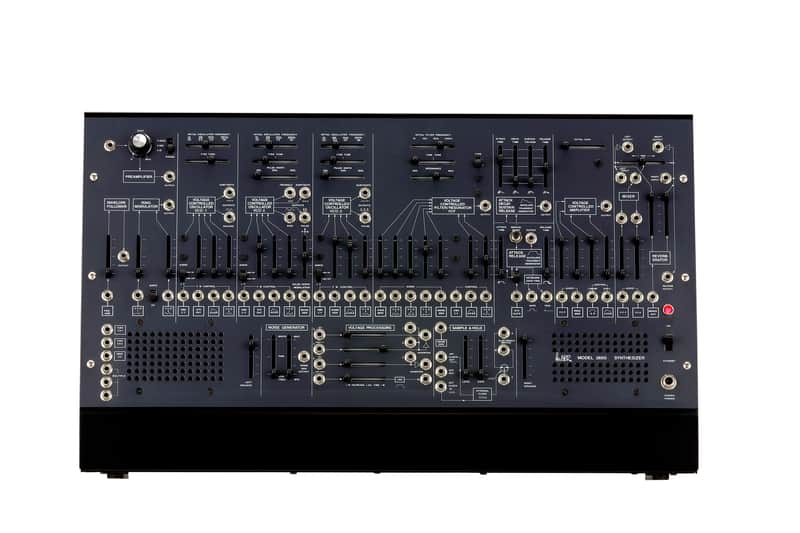

The Korg ARP 2600 M is a semi-modular analog synthesizer in black, presented as a more compact version of the original ARP 2600 design. This brand-new unit maintains the sound-shaping capabilities of its predecessor while offering a smaller, more portable footprint.
Seller notes: El ARP 2600 M es una fiel recreación del legendario sintetizador analógico que definió el sonido de una era, ahora en un formato más compacto y manejable sin comprometer su potencia sonora.
