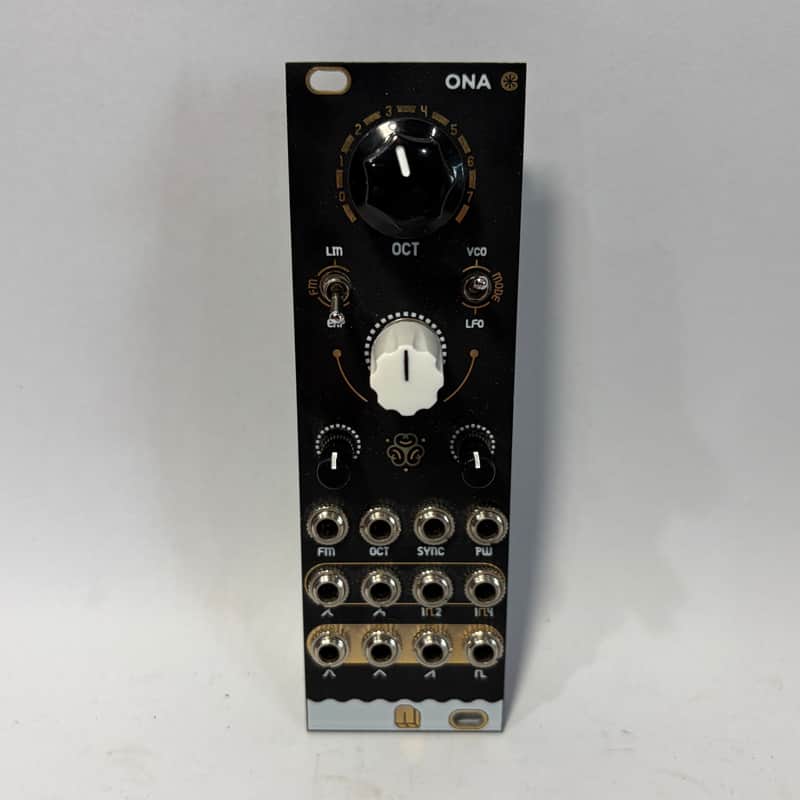

NANO Modules ONA Analog Oscillator
$275.37
Sale price
$275.37
Regular price
Skip to product information
NANO Modules ONA Analog Oscillator
NANO Modules ONA Analog Oscillator — sourced facts: Module type: Voltage-controlled analog oscillator; Core: 3340-based pure analog triangle-core oscillator; VCO frequency range: 20 Hz to more than 40 kHz; Waveform outputs: Sine, triangle, sawtooth, pulse, Complex 1, Complex 2, Sub -1 octave and Sub -2 octave.
$275.37
Sale price
$275.37
Regular price
Condition
Excellent
Specs
Verified model facts
Specifications
| Module type | Voltage-controlled analog oscillator |
|---|---|
| Core | 3340-based pure analog triangle-core oscillator |
| VCO frequency range | 20 Hz to more than 40 kHz |
| Waveform outputs | Sine, triangle, sawtooth, pulse, Complex 1, Complex 2, Sub -1 octave and Sub -2 octave |
| Width | 8 HP |
|---|---|
| Depth | 20 mm |
| Current draw | 50 mA at +12 V / 30 mA at -12 V |
Fit and constraints
Intended use
Constraints
Power50 mA at +12 V / 30 mA at -12 V
Board space8 HP
To use it
Description
NANO Modules ONA Analog Oscillator analog oscillator module in excellent condition. Finish: black, white, gold/bronze.
