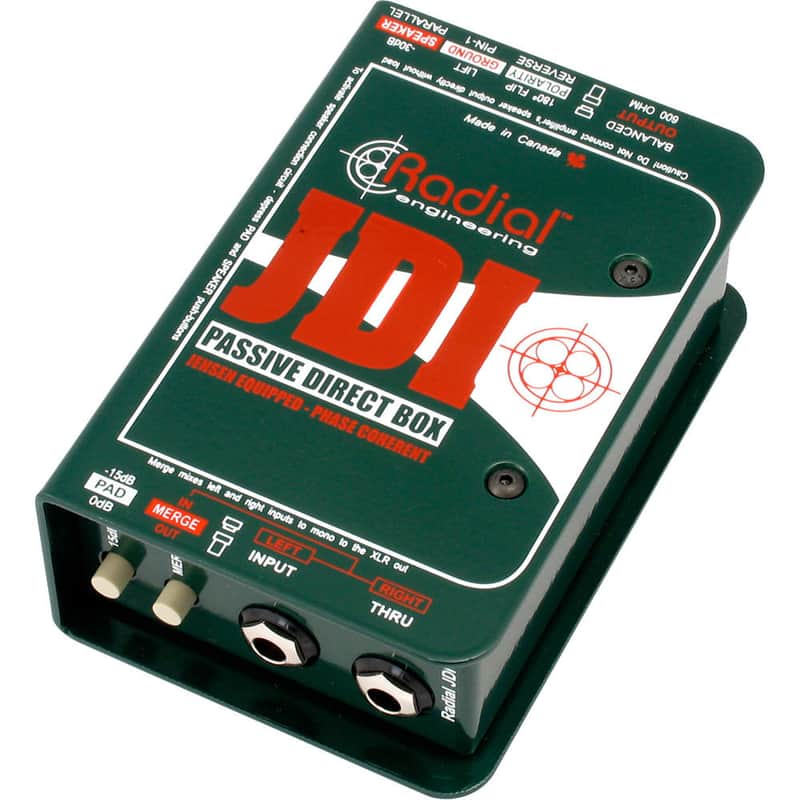

Radial JDI Passive Direct Box - Jensen Equipped
Radial JDI Passive Direct Box - Jensen Equipped — sourced facts: Audio circuit type: Passive, transformer based; Transformer: JT-DB-EPC; Number of channels: Single channel (mono); Frequency response: 20Hz ~ 20KHz (± 0.2dB).
$268.52
Sale price
$268.52
Regular price
Condition
Excellent
Specs
Verified model facts
Specifications
| Audio circuit type | Passive, transformer based |
|---|---|
| Transformer | JT-DB-EPC |
| Number of channels | Single channel (mono) |
| Frequency response | 20Hz ~ 20KHz (± 0.2dB) |
| Dynamic range | 135dB |
| Total harmonic distortion | 0.05% from 20Hz ~ 20kHz @-10dB |
| Phase Deviation | 0.3° @ 100Hz; 3° @ 20Hz |
| Input Impedance | 140k Ohms, unbalanced |
| Output Impedance | 150 Ohms, balanced |
| Maximum Input | +21dB @ 20Hz ~ 20kHz |
| Finish | Durable powder coat |
| Conditions | For use in dry locations only between 5°C and 40°C |
| Size (L x W x D) | 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm) |
|---|---|
| Weight | 1.55 lbs (703 grams) |
| Shipping size (L x W x D) | 6.5" x 4" x 3" (165mm x 102mm x 76mm) |
| Shipping weight | 1.92 lbs (870.9 grams) |
| Dimensions note | 127mm x 84 |
| Format | Eurorack |
| Power | Passive, no power required |
|---|
Fit and constraints
Intended use
Constraints
PowerPassive, no power required
To use it
Description
Radial JDI passive direct box with Jensen transformer, in excellent condition. Previously used on a bass rig.
Seller notes: Had this on my bass rig for a short spell.
