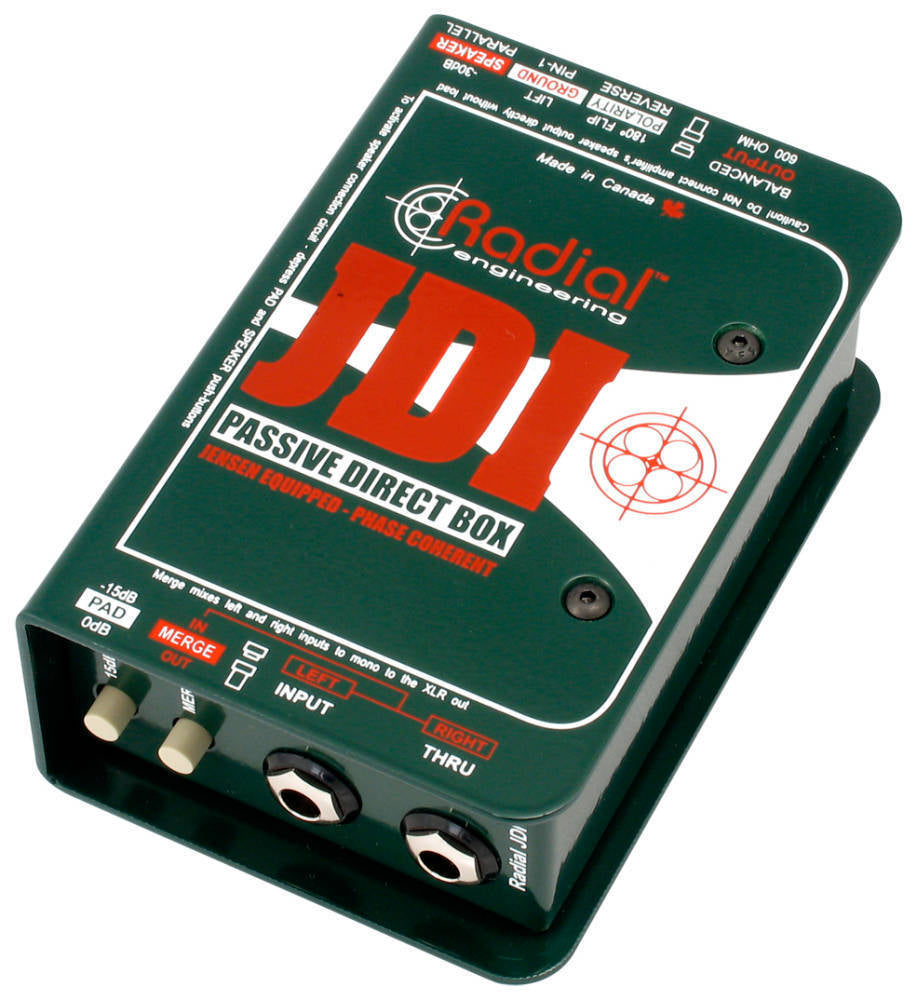

Radial JDI - Passive Direct Box
Radial JDI - Passive Direct Box
Radial JDI - Passive Direct Box — sourced facts: Audio circuit type: Passive, transformer based; Transformer: JT-DB-EPC; Number of channels: Single channel (mono); Frequency response: 20Hz ~ 20KHz (± 0.2dB).
Specifications
| Audio circuit type | Passive, transformer based |
|---|---|
| Transformer | JT-DB-EPC |
| Number of channels | Single channel (mono) |
| Frequency response | 20Hz ~ 20KHz (± 0.2dB) |
| Dynamic range | 135dB |
| Total harmonic distortion | 0.05% from 20Hz ~ 20kHz @-10dB |
| Phase Deviation | 0.3° @ 100Hz; 3° @ 20Hz |
| Input Impedance | 140k Ohms, unbalanced |
| Output Impedance | 150 Ohms, balanced |
| Maximum Input | +21dB @ 20Hz ~ 20kHz |
| Finish | Durable powder coat |
| Conditions | For use in dry locations only between 5°C and 40°C |
| Size (L x W x D) | 5" x 3.3" x 1.8" (127mm x 84.1mm x 45.5mm) |
|---|---|
| Weight | 1.55 lbs (703 grams) |
| Shipping size (L x W x D) | 6.5" x 4" x 3" (165mm x 102mm x 76mm) |
| Shipping weight | 1.92 lbs (870.9 grams) |
| Dimensions note | 127mm x 84 |
| Format | Eurorack |
| Power | Passive, no power required |
|---|
Fit and constraints
Intended use
Constraints
To use it
Comparison
Questions
Can you confirm the core specs that matter for compatibility in this setup?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is this still available and has anything changed since the listing was posted?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
The Radial JDI is a passive direct box designed for professional audio recording applications. This unit is brand new.
Seller notes: The Radial JDI is considered by many to be the worlds finest direct box.
