WesAudio HYPERION ng500 500 Series Parametric EQ Module 2018 - Present - White
WesAudio HYPERION ng500 500 Series Parametric EQ Module 2018 - Present - White
WesAudio HYPERION ng500 500 Series Parametric EQ Module 2018 - Present - White — sourced facts: Device: x 1; USB B mini cable: x 1; Frequency response: 10Hz-150kHz (-2dB); THD+N all bands gain “0”: 0.03% (1kHz,0dBu).
Specifications
| Device | x 1 |
|---|---|
| USB B mini cable | x 1 |
| Frequency response | 10Hz-150kHz (-2dB) |
| THD+N all bands gain “0” | 0.03% (1kHz,0dBu) |
| THD+N +15dB band boost | <0.15% (1kHz,0dBu) |
| Input impedance | 10kohm |
| Output impedance | < 100ohm |
| Max signal level | +24dBu |
| Crosstalk | < -100dB |
| THD (MID switch) | 1% |
| THD (HIGH switch) | 2.5% |
| Warranty | 2 years |
| Unit dimensions | 76x133x158 mm |
|---|---|
| Box dimensions | 105x162x234 mm |
| Unit weight | 0,7 kg |
| Box weight | 0.9 kg |
| Plugin formats | Available in AAX, AAX DSP, VST3, VST2, and AU for broad compatibility. |
| Power consumption | 150mA per rail |
|---|
Fit and constraints
Intended use
Constraints
To use it
Questions
Can you confirm exactly what is included in the sale and show it in current photos?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Are there any functional issues, repairs, or missing parts not shown in the listing?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Can you provide close-up photos of wear points, serial numbers, and any modifications?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

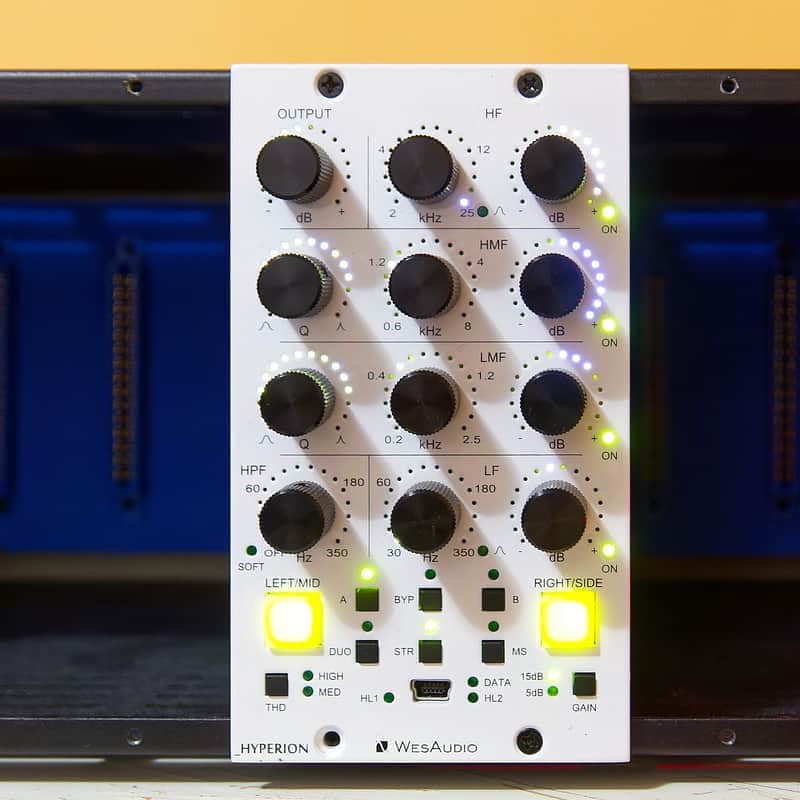

The WesAudio HYPERION ng500 is a 500-series parametric EQ module featuring four fully analog bands with switchable gain ranges and adjustable Q settings. It offers stereo, dual-mono, and mid-side operation modes, along with digital recall and automation capabilities via USB. This unit is in excellent condition and comes in its original box.
Seller notes: Like new condition comes in original box
