Vintage Western Electric 618A WDGY Dynamic Microphone w/ Stand & Flag
$1,027.49
Sale price
$1,027.49
Regular price
Skip to product information
Vintage Western Electric 618A WDGY Dynamic Microphone w/ Stand & Flag
Vintage Western Electric 618A WDGY Dynamic Microphone w/ Stand & Flag — sourced facts: Audio resolution: 15 kHz; Manufacturer: Western Electric; Type: Moving Coil; Directionality: Omnidirectional.
$1,027.49
Sale price
$1,027.49
Regular price
Condition
Very Good
Specs
Verified model facts
Specifications
| Audio resolution | 15 kHz |
|---|---|
| Manufacturer | Western Electric |
| Type | Moving Coil |
| Directionality | Omnidirectional |
| Frequency response range | 35 to 9,500 cycles per second |
| Electrical impedance at low frequencies | approximately 28 ohms with a phase angle of nearly zero degrees |
| Electrical impedance at 10,000 cycles per second | about 38 ohms with a phase angle of about 20 degrees |
| Output level | For a person speaking with normal conversational intensity at a distance of three feet, an output level of –84 dB relative to a zero level of six milliwatts is representative |
| Diaphragm material | thin duralumin |
| Magnet type | permanent magnet made from a high grade cobalt steel alloy |
| Coil material | aluminum ribbon |
| Format | Eurorack |
|---|
| Power | 728 VINTAGE TECHNOLOGY ARCHIVE / 07 |
|---|
Fit and constraints
Intended use
Constraints
Power728 VINTAGE TECHNOLOGY ARCHIVE / 07
To use it
Description

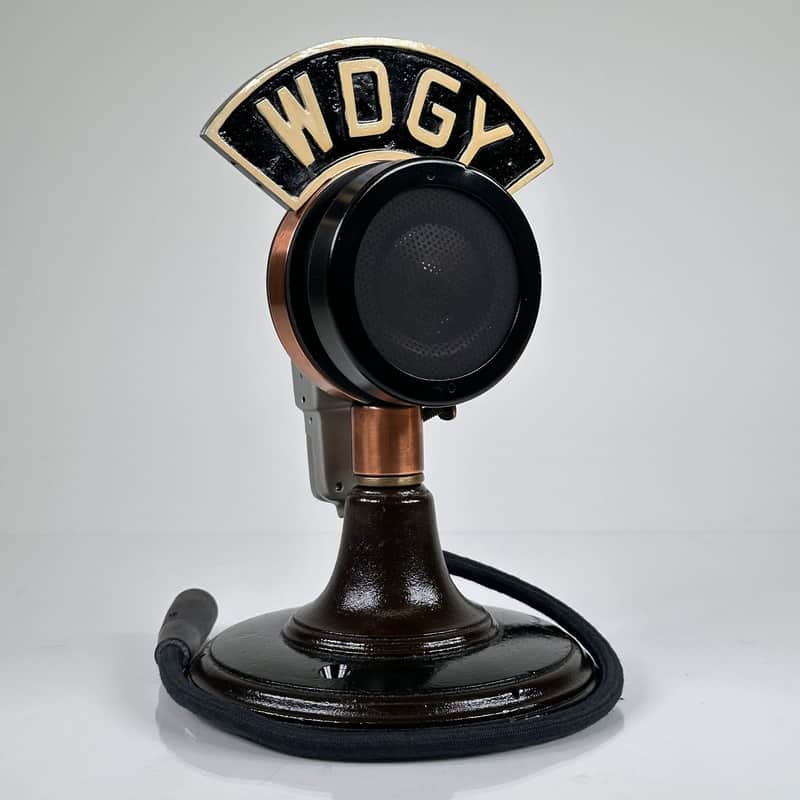

Vintage Western Electric 618A dynamic microphone in very good condition, featuring a stand and flag. The unit shows typical wear consistent with age, with patina visible on copper components and wear on the black finish.
