AMS NEVE StarNet ADA16 — Converter
AMS NEVE StarNet ADA16 — Converter

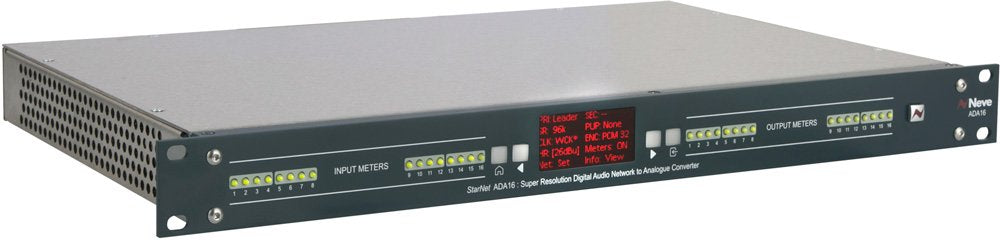

AMS Neve StarNet ADA16 is a 16 x 16 analogue line-level to Dante AD/DA converter for connecting studio line inputs and outputs to an audio-over-IP network.
Specifications
Conversion Format
| Product type | 16 x 16 analogue line-level to Dante AD/DA converter |
|---|---|
| Sample rate | Up to 192 kHz |
| Bit depth | Up to 32-bit integer bandwidth |
| Headroom | Selectable +18, +24 or +26 dBu |
Audio Performance
| Adc dynamic range | >119 dBFS |
|---|---|
| Dac dynamic range | >122 dBFS / page also states >122 dBu |
| Thd n | Typically 0.0008% at 1 kHz, +26 dBu setting, 2 Hz to 92 kHz filter |
| Noise | <-95 dBu A-weighted general noise |
| Frequency response | +/-0.1 dBu from 5 Hz to 22 kHz; +/-3 dBu from 2 Hz to 92 kHz |
Connectivity

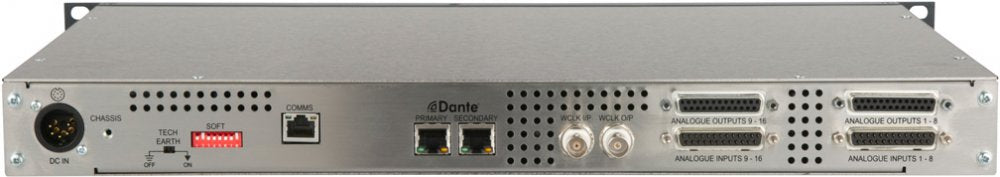

| Analogue inputs | 16 line inputs on 2 x DB-25, Tascam configuration |
|---|---|
| Analogue outputs | 16 line outputs on 2 x DB-25, Tascam configuration |
| Dante ports | 2 Dante Ethernet ports, primary and secondary |
| Communications port | 1 communications Ethernet port |
| Clocking | Word clock sync input and output |
Control and Power

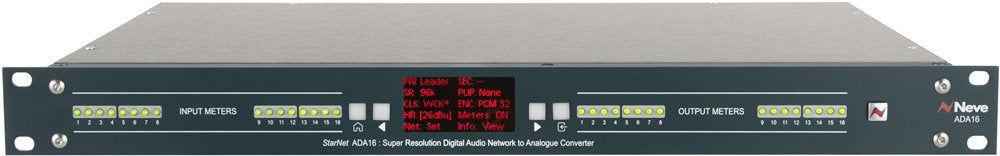

| Front panel | OLED display with network, sample-rate, bit-depth and Dante subscription information plus tri-colour LED I/O metering |
|---|---|
| Remote app | LAN remote mute app for individual output mutes and global attenuation in 0.5 dB steps from 0 to -127.5 dB |
| Power | External PSU; 90-240 V, 0.14 A at 240 V / 0.33 A at 90 V; 30 W heat dissipation |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
AMS Neve StarNet ADA16 is a 16 x 16 analogue line-level to Dante AD/DA converter for connecting studio line inputs and outputs to an audio-over-IP network. The manufacturer specifies conversion up to 192 kHz at up to 32-bit integer bandwidth, with A/D dynamic range greater than 119 dBFS and D/A dynamic range greater than 122 dBFS. Analogue I/O is provided on four DB-25 connectors using Tascam pinout, with selectable headroom of +18, +24 or +26 dBu. The unit includes primary and secondary Dante Ethernet ports for redundancy or switched operation, a separate communications Ethernet port, word-clock sync in/out, an OLED front display and tri-colour LED metering for all 16 inputs and outputs. The remote app can mute individual analogue outputs and apply global attenuation in 0.5 dB steps from 0 to -127.5 dB. Accessible sources did not expose GTIN data.
