CHANDLER LIMITED RS660 Compressor with Stepped I/O Switches
CHANDLER LIMITED RS660 Compressor with Stepped I/O Switches
Chandler Limited RS660 Compressor with Stepped I/O Switches is the stepped-control option of Chandler's RS660 mono valve compressor/limiter. The manual and dealer specifications identify the RS660 as a handmade, mono, stereo-linkable tube compressor in a 2U 19-inch rack chassis with internal power supply.
Specifications
Format
| Product type | Mono valve compressor/limiter with stereo link |
|---|---|
| Rack format | 2U 19-inch rackmount |
| Power supply | Internal power supply, preset for 120 V or 220 V operation |
| Version | Stepped I/O control switches option |
Circuit
| Circuit | Tube compressor/limiter |
|---|---|
| Tube complement | 6386, 6CG7, 6AL5 |
| Influences | Design informed by EMI Abbey Road RS124 and Fairchild 660 compressor history |
| Origin | Hand-built in Shell Rock, Iowa, USA |
I/O

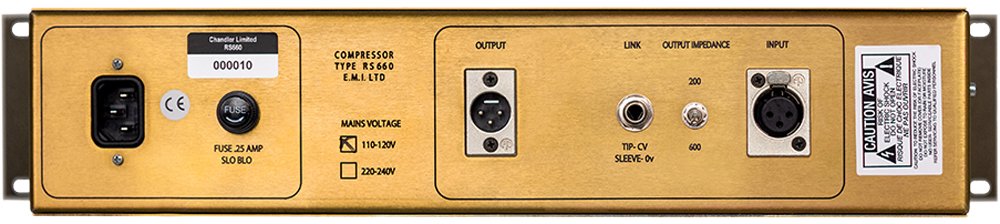

| Input | Transformer-balanced XLR input, pin 2 hot, +4 operation |
|---|---|
| Output | Transformer-balanced XLR output, pin 2 hot |
| Input impedance | 15 kOhm |
| Output impedance | Switchable 200 / 600 ohms |
| Stereo link | Rear-panel 1/4-inch link jack; link cable sold separately |
Controls
| Modes | THD, Limit and Comp selectable modes |
|---|---|
| Time constant | Seven-position stepped time-constant switch |
| Metering | Analog gain-reduction meter |
| Balance utility | Front-panel BAL rebalancing utility for push/pull circuit |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

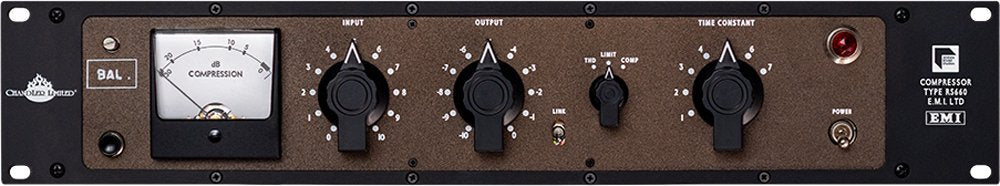

Chandler Limited RS660 Compressor with Stepped I/O Switches is the stepped-control option of Chandler's RS660 mono valve compressor/limiter. The manual and dealer specifications identify the RS660 as a handmade, mono, stereo-linkable tube compressor in a 2U 19-inch rack chassis with internal power supply. Its tube complement is listed as 6386, 6CG7 and 6AL5, with custom transformer-balanced XLR input and output, pin 2 hot, +4 operation, 15 kOhm input impedance, and switchable 200/600 ohm output impedance. Front-panel controls include input, output, THD/Limit/Comp mode selection, a seven-position time-constant switch, link switching, analog gain-reduction metering and a BAL rebalancing utility. The stepped I/O version substitutes stepped input/output control switches for the standard variable controls. GTIN, exact dimensions beyond rack format, and weight were not found in accessible sources.
