Neumann U 47 fet Collector's Edition is the large-diaphragm cardioid condenser microphone sold under Neumann catalog number 006427, with wooden box, certificate and operating manual.
Specifications
Microphone Type
| Transducer type | Large-diaphragm condenser microphone |
|---|---|
| Acoustical principle | Pressure gradient transducer |
| Directional pattern | Cardioid |
| Capsule | K 47 large diaphragm capsule |
Audio Specifications
| Frequency range | 40 Hz ... 16 kHz |
|---|---|
| Sensitivity | 8 mV/Pa = -42 dBV ±1 dB at 1 kHz into 1 kohm |
| Rated impedance | 150 ohms |
| Equivalent noise | 25 dB CCIR; 18 dB-A A-weighted |
| Max spl | 137 dB for 0.5% THD; 147 dB with preattenuation |
Power and Package
| Phantom power | 48 V ±4 V, 0.5 mA |
|---|---|
| Connector | XLR 3 F |
| Included items | Microphone, wooden box, certificate and operating manual |
| Catalog number | 006427 |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

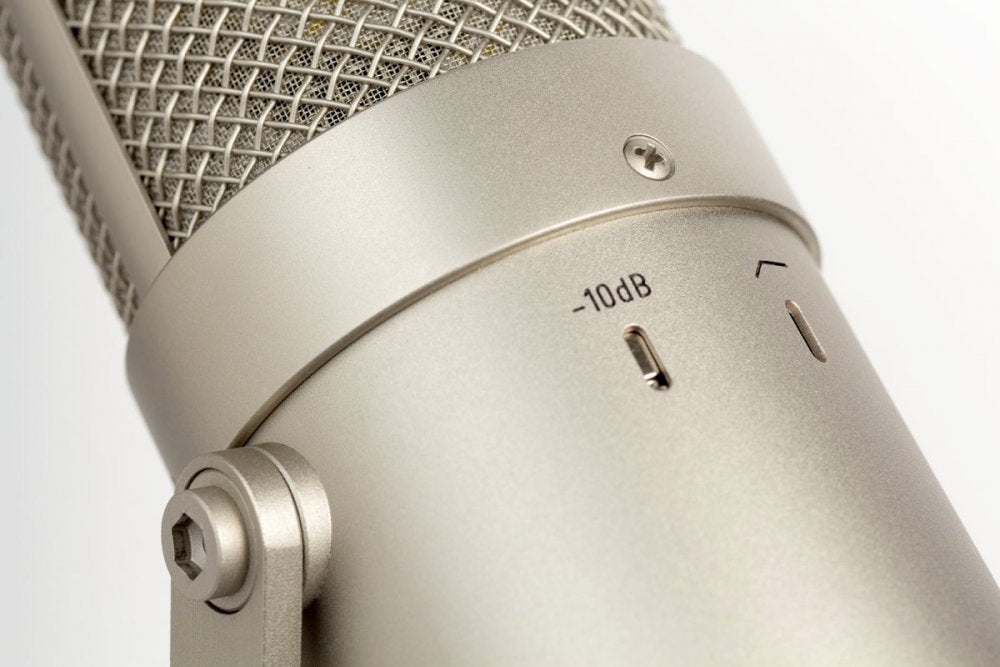

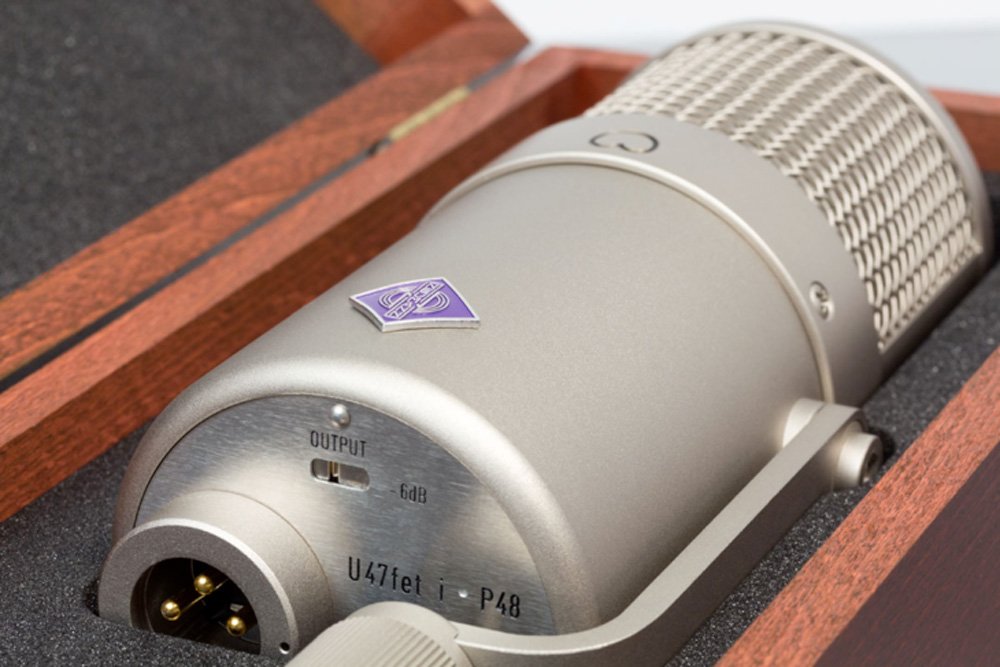

Neumann U 47 fet Collector's Edition is the large-diaphragm cardioid condenser microphone sold under Neumann catalog number 006427, with wooden box, certificate and operating manual. Neumann's current U 47 fet i page describes the same reissued U 47 fet design as an exact reproduction of the 1972-1986 classic: a pressure-gradient cardioid microphone using a K 47 large-diaphragm capsule, FET electronics and a large output transformer. It provides rear-access pad and low-cut switches plus a 6 dB output attenuation switch near the XLR. Published specifications include 40 Hz-16 kHz frequency range, 8 mV/Pa sensitivity, 150 ohm rated impedance, 137 dB maximum SPL or 147 dB with preattenuation, 48 V phantom power, 710 g weight, 63 mm diameter and 160 mm length.
