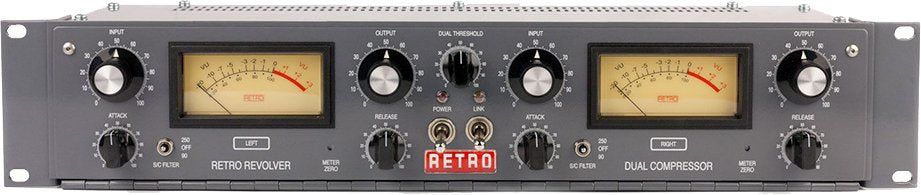

Front panel of a Retro Revolver dual compressor with dual analog VU meters and multiple knobs and switches.

RETRO INSTRUMENTS Revolver

$5,195.00
$5,195.00
Skip to product information
Front panel of a Retro Revolver dual compressor with dual analog VU meters and multiple knobs and switches.
  • Front panel of a Retro Revolver dual compressor with dual analog VU meters and multiple knobs and switches.
  • Revolver
  • Revolver
  • Front panel of a Retro Revolver dual compressor with dual analog VU meters and multiple knobs and switches.
  • Revolver
  • Revolver
RETRO INSTRUMENTS Revolver

RETRO INSTRUMENTS Revolver

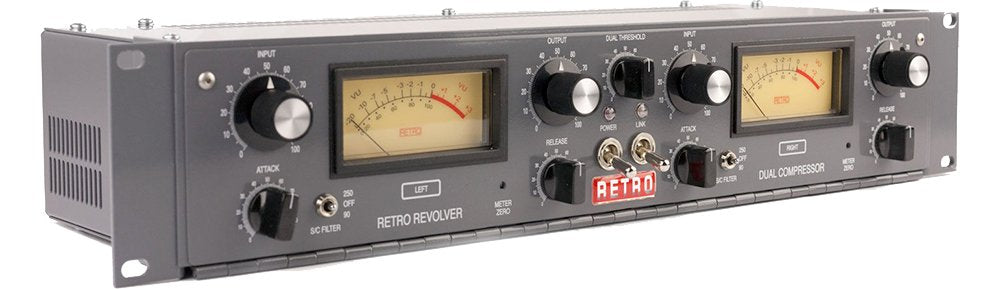

Retro Instruments Revolver is a 2U dual-channel tube compressor based on the British-modified Altec 436 compressor concept.

$5,195.00
$5,195.00
Condition Brand New
Specs Verified model facts
Checked against 1 listing
Verified
Use Studios seeking a stereo-capable tube compressor for tracking, mixing, mastering or bus processing with variable attack/release/ratio and side-chain filtering.
Requires appropriate audio and data cables, compatible monitoring, mounting, or power setup
In stock Ask a question

Specifications

Dual-channel tube compressor · 120 VAC or 240 VAC, 22 W

Format

Product type Dual-channel tube compressor
Channels 2
Rack format 2U rackmount
Circuit basis Based on the British-modified Altec 436 compressor concept

Controls

Controls Input, Output, Attack, Release, Threshold, Side-chain filter select and Stereo Link
Ratio Adjustable between 1.5:1 and 5:1
Stereo link Independent channel controls with stereo linking
Metering Illuminated VU meters and front-panel meter zero controls

Dynamics

Attack 2 to 40 ms
Release 200 ms to 2 s
Sidechain filter Selectable 6 dB detector rolloff at 90 or 250 Hz

Audio Specifications

Input level range -20 to +20 dBu usable input level range
Output level range -30 to +18 dBu output level range
Output clip level +23 dBu at 1% distortion
Frequency response 20 Hz-20 kHz +/-0.5 dB
Distortion Less than 0.05% below compression threshold; approximately 1% at full-scale compression

Power and Connections

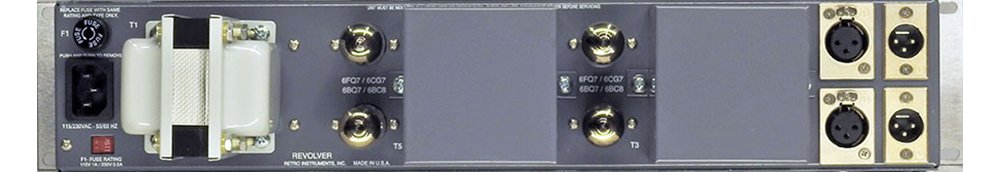

Connections IEC power plus XLR input and output x2
Power 120 VAC or 240 VAC, 22 W

Fit and constraints

Studios seeking a stereo-capable tube compresso… · 120 VAC or 240 VAC, 22 W

Intended use

Use Studios seeking a stereo-capable tube compressor for tracking, mixing, mastering or bus processing with variable attack/release/ratio and side-chain filtering.
Not for Users needing clean feed-forward VCA compression, compact 500-series format, digital recall, or more than two channels.

Constraints

Power120 VAC or 240 VAC, 22 W

To use it

Required appropriate audio and data cables, compatible monitoring, mounting, or power setup

Questions

3 to ask before buying

Which connections, drivers, operating systems, and sample rates are supported by this exact revision?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

What cables, mounts, power supplies, or licenses are included?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Is the current retailer listing new stock, demo stock, open box, or special order?

Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.

Description

Product details

Retro Instruments Revolver is a 2U dual-channel tube compressor based on the British-modified Altec 436 compressor concept. Retro specifies two channels with independent controls and stereo linking, a fully differential all-tube signal path, transformer-balanced XLR inputs and outputs, illuminated VU meters, front-panel meter-zero controls and an internal tube-balancing facility. Controls include input, output, attack, release, threshold, side-chain filter select and stereo link. Published specs list adjustable ratio from 1.5:1 to 5:1, usable input level from -20 to +20 dBu, output level from -30 to +18 dBu, +23 dBu output clip level at 1% distortion, 2-40 ms attack, 200 ms-2 s release, switchable 90 or 250 Hz 6 dB side-chain detector rolloff, 20 Hz-20 kHz +/-0.5 dB response, less than 0.05% distortion below threshold, 9.5 in depth and 22 lb weight.
