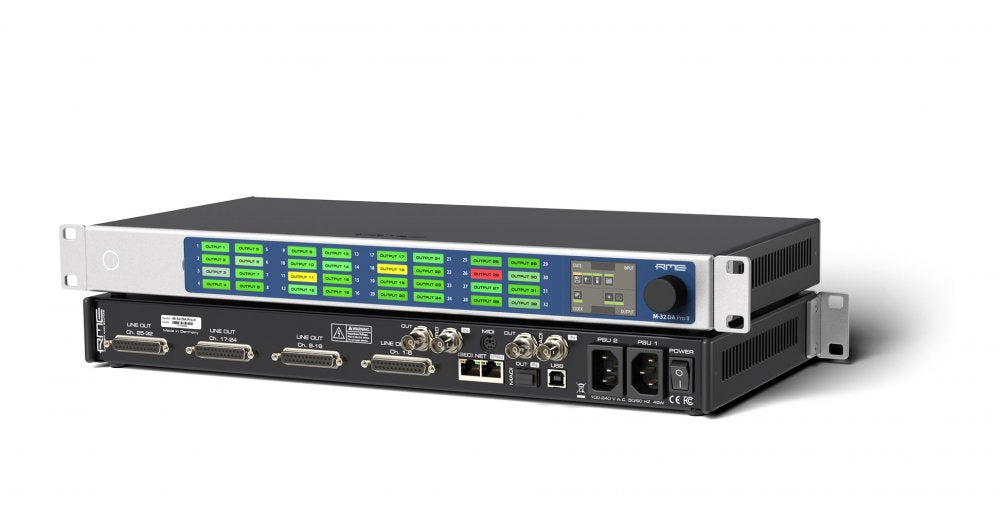

RME M-32 Pro DA II — Converter
RME M-32 Pro DA II — Converter
RME M-32 Pro DA II is the 32-channel digital-to-analog member of the M-32 Pro II converter line. RME describes the series as 32-channel, 192 kHz AD or DA converters with MADI and AVB; the DA model provides 32 analog outputs.
Specifications
Conversion
| Converter type | 32-channel digital-to-analog converter |
|---|---|
| Max sample rate | 192 kHz |
| Analog channels | 32 analog outputs |
| Line levels | +24 dBu, +19 dBu, +13 dBu |
| Thd plus noise | DA converter THD+N improved to -111 dB |
| Outputs | DC-coupled outputs |
Digital I/O and Networking
| Network audio | AVB with two redundant Gigabit Ethernet ports |
|---|---|

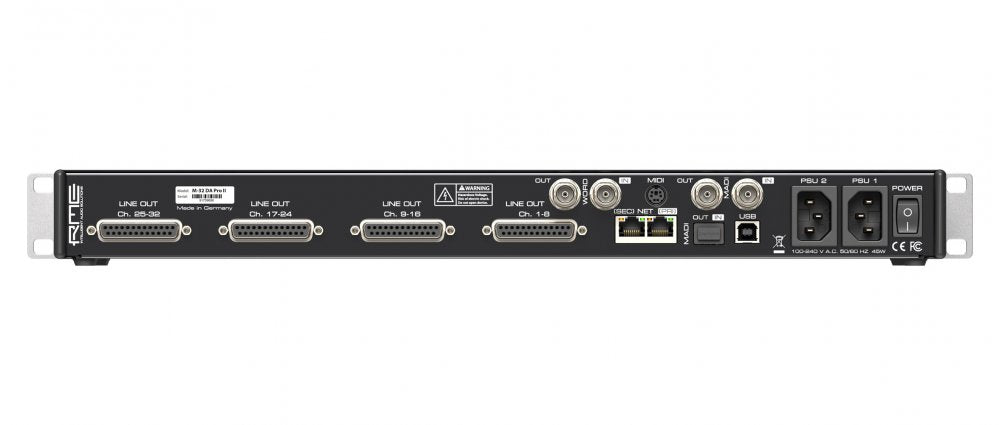

| Madi | Coaxial MADI I/O; optional optical MADI SFP |
| Avb capacity | 128 channels at 48 kHz; 96 at 96 kHz; 64 at 192 kHz |
| Clocking | Word clock I/O; SteadyClock FS; SyncCheck/ICC referenced by retailer |
| Midi usb | MIDI I/O and USB for firmware/remote control |
Control and Installation
| Remote control | Front panel, network/web access, Wi-Fi via network, and USB |
|---|---|
| Api | JSON API and SysEx MIDI commands |
| Routing | Integrated routing matrix with single-channel routing |

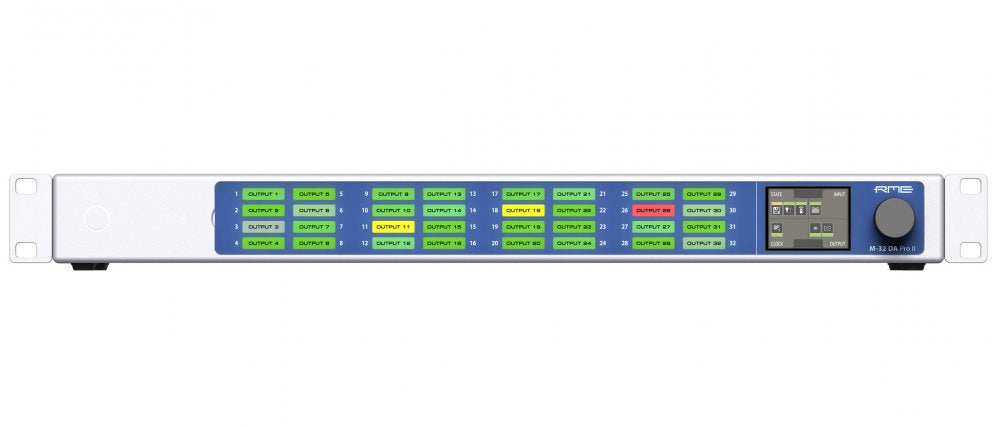

| Labeling | Tri-color back-lit channel label fields with magnetic cover |
| Power supply | Redundant PSU |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
RME M-32 Pro DA II is the 32-channel digital-to-analog member of the M-32 Pro II converter line. RME describes the series as 32-channel, 192 kHz AD or DA converters with MADI and AVB; the DA model provides 32 analog outputs. Core features include coaxial MADI I/O, optional optical MADI SFP, word clock I/O, MIDI I/O, two redundant Gigabit Ethernet AVB ports, USB for firmware and remote control, redundant power supplies, SteadyClock FS, front-panel and network control, JSON API/SysEx integration, and a routing matrix for single-channel routing. RME highlights fully balanced analog circuitry, DC-coupled outputs, selectable +24/+19/+13 dBu line levels, up to 120 dB(A) SNR, and DA THD+N improved to -111 dB.
