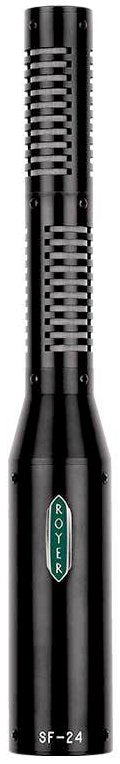

Royer SF-24 is a phantom-powered active stereo ribbon microphone based on the passive SF-12, using two matched ribbon transducers stacked as a coincident stereo pair. Each ribbon is angled 45 degrees from center for Blumlein stereo and can also be used for M-S recording or as individual mono channels.
Specifications
Transducer and Pattern
| Microphone type | Phantom-powered active stereo ribbon microphone |
|---|---|
| Operating principle | Electrodynamic pressure-gradient with active electronics |
| Polar pattern | Crossed figure-8s |
| Stereo array | Two matched ribbon microphones stacked in a coincident pair, each aimed 45 degrees from center for Blumlein; supports M-S |
| Ribbon | 1.8-micron aluminum ribbon |
Audio Specifications
| Frequency response | 40 Hz to 15,000 Hz +/-2 dB |
|---|---|
| Sensitivity | -38 dB re. 1 V/Pa +/-1 dB |
| Self noise | Less than 18 dB |
| Output impedance | 200 ohms |
| Rated load impedance | 1 kohm |
| Maximum spl | >130 dB |
Electronics and Connectivity
| Active electronics | Two fully balanced discrete head amplifier systems with specially wound toroidal transformers and ultra-low-noise FETs |
|---|---|
| Power requirement | 48 V phantom power only, 4 mA per channel |
| Output connector | Male 5-pin XLR stereo output; extension cable/Y adapter splits to upper and lower 3-pin male XLRs |
| Mono use | Either side may be used individually as a mono microphone; channels are highly phase compatible when summed |
Physical
| Dimensions | 270 mm length x 39 mm base diameter x 25 mm top diameter |
|---|---|
| Weight | 583 g / 20.5 oz |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description
Royer SF-24 is a phantom-powered active stereo ribbon microphone based on the passive SF-12, using two matched ribbon transducers stacked as a coincident stereo pair. Each ribbon is angled 45 degrees from center for Blumlein stereo and can also be used for M-S recording or as individual mono channels. Royer specifies crossed figure-8 polar patterns, 1.8-micron aluminum ribbon elements, active electronics with discrete head amplifiers and custom toroidal transformers, 40 Hz-15 kHz +/-2 dB response, -38 dB sensitivity, self-noise below 18 dB, 200 ohm output impedance, 1 kohm rated load and maximum SPL above 130 dB. The mic requires 48 V phantom power at 4 mA per channel and uses a 5-pin male XLR stereo output. Royer lists dimensions of 270 mm length, 39 mm base diameter and 25 mm top diameter, with 583 g weight.
