Rack-mountable immersive audio processor with 24-channel decoding for Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced, featuring Trinnov's room correction and low-frequency processing via Dante/Ravenna connectivity and multiple analog/digital I/O options.
Specifications
Audio Processing
| Decoding Channels | 24 channels of decoding |
|---|---|
| Configurable Output Channels | 8–32 outputs, in 2-channel increments |
| Processing Architecture | Software-based, 64-bit floating point |
| Max Sample Rate | Up to 192 kHz (channel dependent) |
Immersive Audio Formats
| Decoders | Dolby Atmos, DTS:X Pro, Auro-3D, IMAX Enhanced |
|---|---|
| Upmixers | Dolby Surround, DTS Neural:X, Auro-Matic |
| Acoustic Technologies | Optimizer 3D room/speaker correction, WaveForming, Remapping |
Video / HDMI
| HDMI Inputs / Outputs | 4 inputs, 2 outputs |
|---|---|
| HDMI Version | HDMI 2.1 with HDCP 2.3 |
| HDMI Bandwidth | 40 Gbps on all inputs and outputs |
| Video Resolution Support | 8K60 (4:2:0), 4K120 (4:4:4) |
| HDR Support | HDR10, HDR10+, Dolby Vision, HLG |

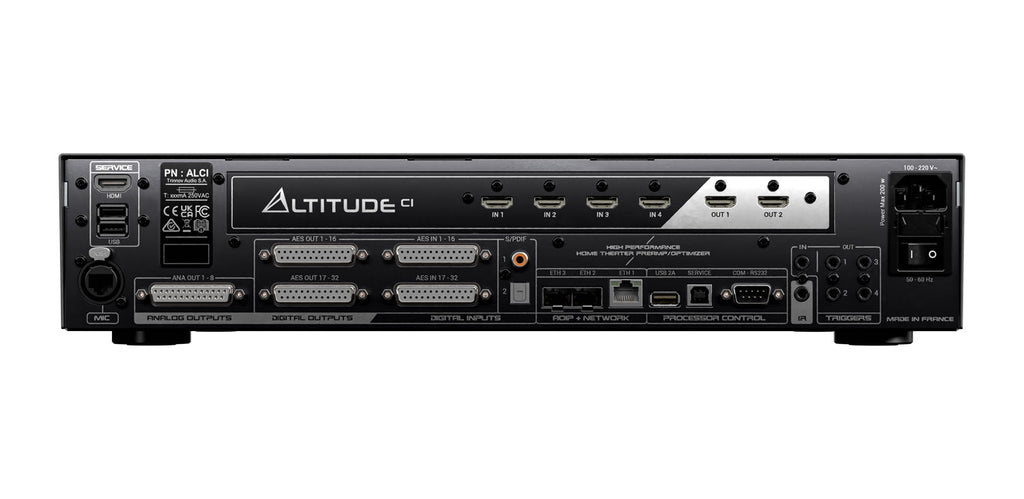

Audio Inputs / Outputs
| Dante Channels | Up to 32 in / 32 out |
|---|---|
| AES/EBU I/O | Up to 32 in and 32 out via 2x DB25 |
| Analog Outputs | 8 balanced via 1x DB25 |
| Analog Output Level | +18 dBu max |
| THD+N (analog) | 110 dB (1 kHz, 0 dBFS, 20 kHz BW) |
| Dynamic Range | 115 dB A-weighted (ref +18 dBu) |
| S/PDIF | 1 coaxial + 1 optical |
| 3D Microphone Input | 1x Ethercon (provides power) |
Network / AoIP
| AoIP Protocols | Dante, AES67, Ravenna |
|---|---|
| Ethernet Ports | 3x Gigabit: 1x RJ45, 2x SFP cages |
| Networking Modes | Integrated switch, isolated, redundant paths |
Control & Integration
| Front Panel | 5-inch touchscreen |
|---|---|
| Physical Control Interfaces | RS-232, IR input (3.5 mm), IP |
| Triggers | 1x input, 4x programmable outputs |
| Control System Drivers | Crestron, Control4, Savant, RTI, AMX, Nice, AVA |
| Control Apps | iOS, Android, Web UI, macOS, Windows |
Power & Thermal
| Power Input | 100–240V auto-switching |
|---|---|
| Power Consumption | 140 W (0.5 W idle) |
| Heat Output | 480 BTU/hr (max load) |
| Cooling | Temperature-controlled exhaust fans |
Physical
| Form Factor | 2RU rack-mountable |
|---|---|
| Dimensions (with ears/feet) | 482 x 97 x 371 mm (18.98 x 3.82 x 14.61 in) |
| Dimensions (without ears/feet) | 438 x 88 x 371 mm (17.24 x 3.46 x 14.61 in) |
| Weight | 8.6 kg (19 lb) |
| Construction | Brushed aluminum with smoked-glass touchscreen front |
Fit and constraints
Intended use
Constraints
To use it
Questions
Which connections, drivers, operating systems, and sample rates are supported by this exact revision?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
What cables, mounts, power supplies, or licenses are included?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Is the current retailer listing new stock, demo stock, open box, or special order?
Ask before you buy via contact. Confirm power, condition grade, and included items against the listing photos.
Description

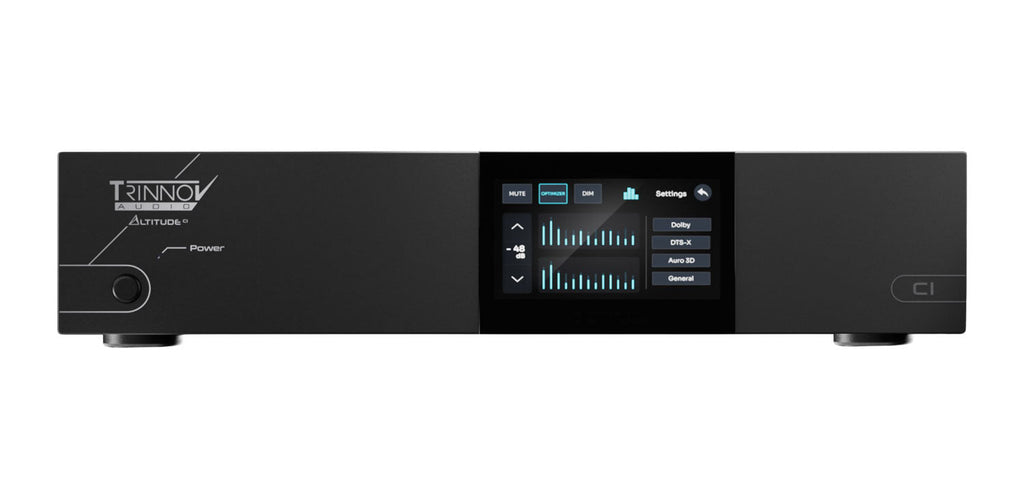

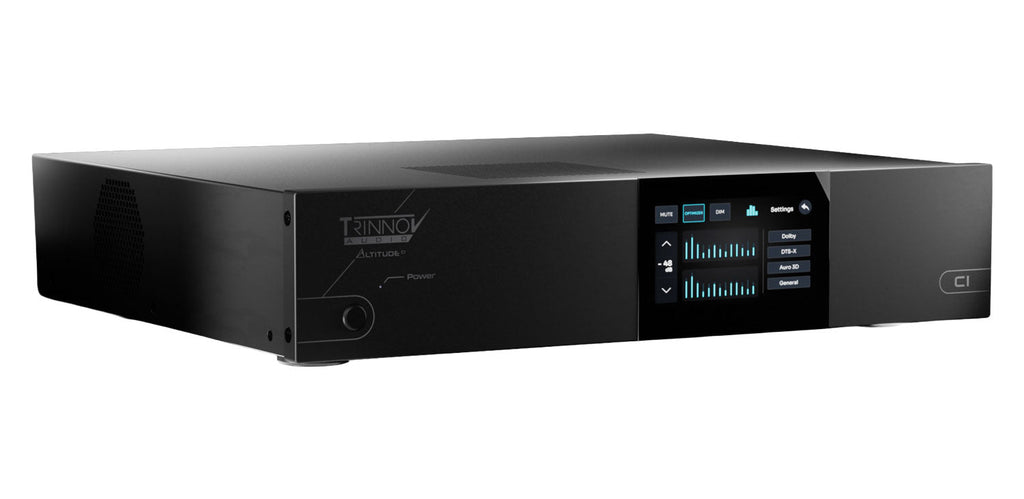

The Trinnov AltitudeCI 24 is a 2RU rack-mountable audio-over-IP processor for custom-install immersive sound systems, with 24 channels of decoding within the AltitudeCI platform's scalable 8-to-32-channel range. It decodes Dolby Atmos, DTS:X Pro, Auro-3D and IMAX Enhanced and applies Trinnov's Optimizer 3D room/speaker correction and WaveForming low-frequency processing using a software-based 64-bit floating-point engine at sample rates up to 192 kHz. Connectivity includes native Dante and Ravenna/AES67 audio-over-IP, up to 32 channels of AES/EBU I/O over DB25, eight balanced analog outputs, four HDMI 2.1 inputs and two outputs, and three configurable Gigabit Ethernet ports. The chassis carries a 5-inch front touchscreen and can be controlled via RS-232, IP, IR, and mobile or desktop apps.
